10 Ton 12 Ton 13 Ton Excavator Machine Official Xe135b Hydraulic Excavator for Sale

Product Description

Product Description

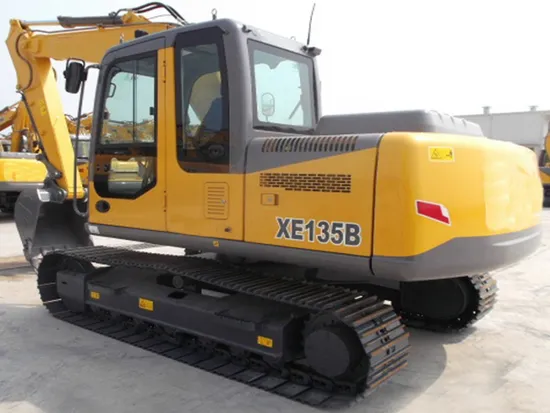

10 ton 12 ton 13 ton excavator machine official XE135B hydraulic excavator for sale

1,High-end configuration·Excellent performanceXE60WGH is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency, large digging force, comfortable driving environment and wide range of application.
2,New generation·Environmental·Energy-saving·Large power engineNew generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced, and fuel consumption is reduced by 10% or less compared to previous generation of machine.With independently developed intelligent study-type control system in XE60 series, it can be matched efficiently and reasonably so that the resistance of hydraulic oil return system is greatly decreased, working efficiency reaches above 15% (compared with old model XE60), which has the highest earthwork efficiency among similar models.
3,High quality·Enjoyable driving
(1) Driver's cabBrand new injection molding drive's cab, advanced ergonomic design and sufficient provide the best working environment for operators.(2) Precautions against vibrationDouble glazing glass and liquid seal shock rubber are standard so that the noise is reduced to minimum (reduced by 6DB) and the fatigue of driver is effectively relieved.(3) Air-conditionerThe air volume of new sir-conditioning system is increased by 23%, which brings better heating and cooling effect and more comfortable operation.
4,Firm and efficient·Durable(1) Structural partsWith finite element analysis for structural parts and application of enhanced working devices, the reliability, durability,multi-mode adaptability are greatly improved. It has the bucket with largest capacity among the same type of models so that the efficiency of whole machine is greatly improved, meanwhile overall quality distribution is optimized with excellent stability.(2) Carrier ang frameThe new butter pool structure strongly ensures lubrication environment of slewing mechanism so that its service life is greatly extended; oversize slewing bearing and carrier system bring the whole machine stronger adaptability in mine conditions and longer service life. Product Parameters

Description				Unit	Parameter value
Operating weight				Kg	13000
Bucket capacity				m³	0.4-0.52
Engine		Model		/	BB-4BG1TRP
		No. of cylinders		/	4
		Output power		kw/rpm	72.7/2200
		torque/speed		N.m	337.6/1600
		Displacement		L	4.329
Hydraulic system		Main pump		/	2
		Rated flow of main pump		L/min	2×123
		Pressure of prime valve		MPa	31.4/34.3
		Pressure of travel system		MPa	34.3
		Pressure of swing system		MPa	25
		Pressure of pilot system		MPa	3.9
Oil Capacity		Fuel tank capacity		L	250
		Hydraulic tank capacity		L	130
		Engine oil capacity		L	14
Appearance size		Overall length		mm	7770
		Overall width		mm	2512
		Overall height		mm	2880
		Width of platform		mm	2512
		Length of crawler		mm	3660
		Overall width of chassis		mm	2490
		Width of crawler		mm	500
		Track length on ground		mm	2910
		Crawler gauge		mm	1990
		Clearance under counterweight		mm	964
		Min. ground clearance		mm	478
		Min. tail swing radius		mm	1805
Working scope		Max. digging height		mm	8641
		Max. dumping height		mm	6181
		Max. digging depth		mm	5538
		Max. vertical wall digging depth		mm	4727
		Max. digging reach		mm	8296
		Min. swing radius		mm	2335

Detailed Photos
