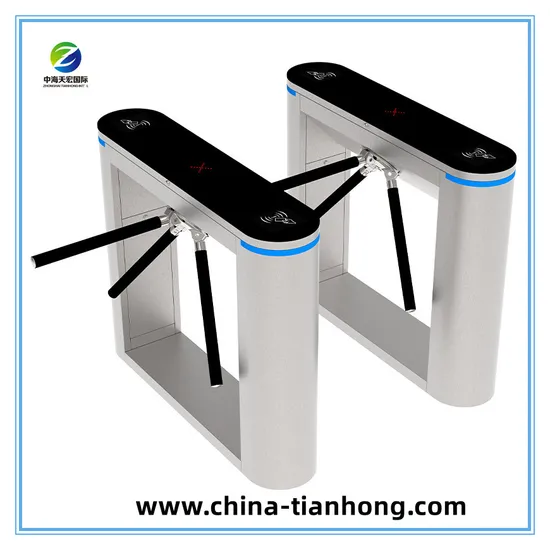

China Made Half Waist Full Automatic Tripod Turnstile

Product Description

China leads in innovative access control with its state-of-the-art Half Waist Automatic Tripod Turnstile. Combining cutting-edge technology and robust design, these turnstiles ensure secure and efficient entry management. Engineered for reliability, they feature advanced access control systems, including biometric recognition and RFID technology, enhancing security measures. The streamlined half-waist design optimizes space utilization without compromising on functionality. Manufactured with high-quality materials, these turnstiles boast durability and longevity, making them ideal for diverse environments. China's commitment to excellence in access control is evident in these turnstiles, setting new standards for automated entry solutions globally.
Parameters 1. Protection: When the force exceeds the set value (such as 40 kg), arm can rotate in order to protect the mechanism from loss and then automatically reset.
2. Configuration: Mechanism, Housing, Control Board and Power supply
3. Operation Direction:Single/bi-direction
4. Structure: Frame structure/Stainless steel/Cold sheet metal with paint
5. Drive Mode:Direct current motor
6. Anti-reverse: Anti-reverse function in order to ensure one card for one person
7. Temperature:-10ºC~60ºC
8. Voltage:AC220V±10% 50Hz±4%
9. Humidity:5%~95%
10. Output:DC24V,DC12V,DC5V
11. Speed:≤25 people/minute
12. Power Consumption: Static state: single mechanism 20W; dynamic state: single mechanism 60W.
13. Noise:<50DB
14. Working Environment: Indoor, Outdoor (with rain frame)
15. Lane Width:550~570mm
16. Interface Parameter: One Rs232 interface, two card reader signals (Passive), one fire alarm interface.
17. Maintenance Port: 2
18. Service Life:Ten years (non-consumable)
19. IP protection:IP42
20. Dimension:L*W*H: 1200 x 280x1040(mm)
21. Net Weight:100kg (Excluding the control part)
Unique Characters
Project Case
Canton Tower
Our services
1. One year warranty; life-time professional technical supports
2. Support customized turnstile gates or OEM
3. One-stop access control/ security solution provider, can help you save time and costs
4. Good quality with competitive price
5. Fast delivery, well-protective package and safe shipping way

---
