| US$4,000.00 | 1 Piece (MOQ) |

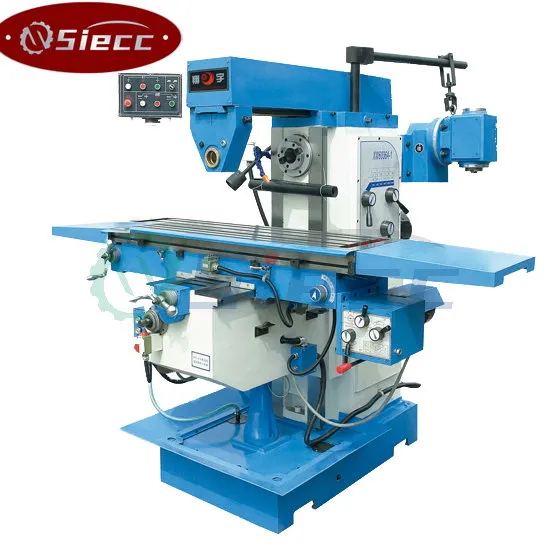

| unit | XQ6226B | XQ6226A | XQ6226-1G | |
| TABLE : | | | | |
| Table size | mm | 1120X260 | 1120X260 | 1120X260 |
| T slot | no | 3 | 3 | 5 |
| Size ( Width ) | mm | 14 | 14 | 14 |
| Centre distance | mm | 63 | 63 | 50 |
| Max. load of Table | kg | 250 | 250 | 250 |
| machining range : | | | | |
| table Longitudinal travel(manual/auto) | mm | 600 | 600 | 600 |
| table Cross travel (manual/auto) | mm | 270 | 270 | 270 |
| table Vertical travel(manual/auto) | mm | 380 | 400 | 400 |
| MAIN SPINDLE : | | | | |
| Spindle taper | | ISO40 | ISO40 | ISO40 |
| spindle speed /step | rpm | 45-1660/11steps | 45-1660/11steps | 45-1660/11steps |
| Max.end milling width | mm | 125 | 125 | 125 |
| Max. vertical milling Dia. | mm | 25 | 25 | 25 |
| swivel angle of swivel head | degree | 360º | 360º | 360º |
| vertical spindle axis to column surface | mm | 60-500 | 60-500 | 60-500 |
| vertical spindle nose to table surface | mm | 100-480 | 100-480 | 100-480 |
| arm travel | mm | 440 | 440 | 440 |
| FEEDS : | | | | |
| Longitudinal/cross feed | mm / min | 24-402/9steps | 24-402/9steps | 24-720/8steps |
| Vertical/step | mm/min | 422/1step | | |
| Longitudinal/cross rapid speed | mm / min | 402 | 402 | 1040(X) |
| Rapid Traverse vertical | mm/min | 422/1step | | |
| POWER : | | | | |
| main motor | kW | 2.2 | 2.2 | 2.2 |
| (X/Y/Z) feed motor | kW | 0.37(X/Y),0.55(Z) | 0.37(X/Y) | 0.37(X) |
| coolant motor | kW | 0.04 | 0.04 | 0.04 |
| others | | | | |
| package dimension | cm | 160X152X222 1pc/case | 160X152X222 1pc/case | 160X152X222 1pc/case |
| | | 220X152X222 2pcs/case | 220X152X222 2pcs/case | 220X152X222 2pcs/case |
| overall dimension | cm | 166x150x173 | 166x150x173 | 166x150x173 |
| N/W,G/W | kg | 1480/1680 | 1400/1600 | 1300/1450 |
