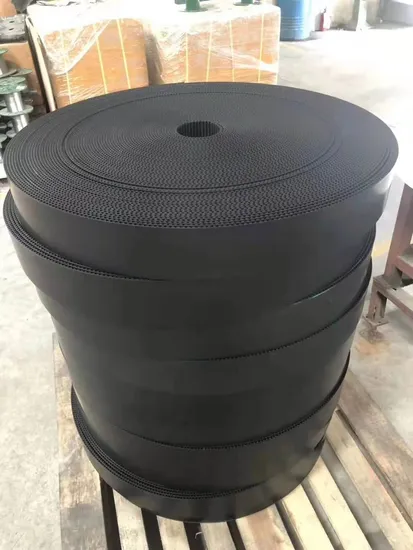

Timing Belt for Ceramic Machinery

Product Description

1)Specification: XL, L, H, XH, T5, T10, T20, AT5, AT10, AT20, 3M, 8M, 14M, S5M;
(2)It could be reinforced by steel wire core or kevlar core at option;
(3)All models teeth could be covered with green fabric and back covered. All items could be jointed endless.
(4)Made of thermoplastic polyurethane materials with high wear resistance;
(5)In the high-load transmission is still keeping good loading capacity;
(6)Opening belt could be continuous length, the middle and the sides are with parallel wire core;
(7)Aging resistance, water proof, working temperature -30 to 80, can endure maximum 110 degree in short time, can be combined with other thermoplastic materials
(8)Hard to be hydrolyzed, anti- acid, UV resistant, not aging, highly resistant to oil, anti-grease.

Item	Pitch length ( MM )	Thickness (MM)	a(MM)	b(MM)	Angle
XL	5.08	2.3	1.27	1.03	50
L	9.525	3.6	1.9	1.7	40
H	12.7	4.3	2.29	2.01	40
XH	22.225	11.2	6.35	4.85	40
T5	5	2.2	1.2	1	40
T10	10	4.5	2.5	2	40
T20	20	8	5	3	40
AT5	5	2.7	1.2	1.5	50
AT10	10	4.5	2.5	2	50
T20	20	8	5	3	50

---
