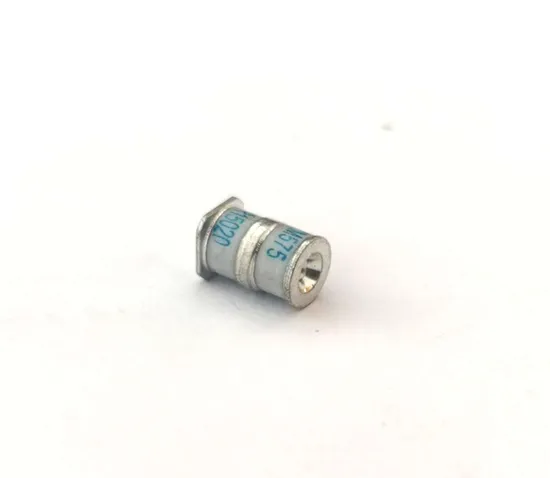

75V 5*7.3mm SMD Ceramic Gas Discharge Tube Electronic Protective Components Gdt

Product Description

TypeФ5×7.5mm (left)	ZM575 3R-75	ZM575 3R-90	ZM575 3R-150	ZM575 3R-230	ZM575 3R-350	ZM575 3R-470
Type(have the expiration protects) Ф5×7.5mm (right)	ZM575 3R-75F	ZM575 3R-90F	ZM575 3R-150F	ZM575 3R-230F	ZM575 3R350F	ZM575 3R470F
Nominal DC Spark-over voltage 100V/s(V)	75	90	150	230	350	470
Tolerance of VS (V)%	±30	±30	±20	±20	±20	±20
Impulse spark-over voltage 100V/μs(V)	≤500	≤500	≤500	≤600	≤800	≤1000
Impulse spark-over voltage 1KV/μs(V)	≤600	≤600	≤650	≤750	≤900	≤1100
Impulse discharge current 10/350μs(KA) 1times	1.5	1.5	1	1	1	1
Impulse discharge current 8/20μs(KA) 10times	10	10	10	10	10	10
Impulse discharge current 10/1000μs(A/times)	100/300	100/300	100/300	100/300	100/300	100/300
Alternating discharge current 50Hz 10times(A)	10	10	10	10	10	10
Insulation resistance (Ω)	≥108	≥108	≥109	>109	>109	>109
Capacitance (1 MHz) pF	<1.2	<1.2	<1.2	<1.2	<1.2	<1.2
Transverse voltage duration(ns)	≤200	≤200	≤200	≤200	≤200	≤200

Detailed Photos

Packaging & Shipping

Company Profile
Certifications

Our Advantages
Ningbo Zhengmao Electronics Co., Ltd With convenient transportation and rapid economical development, Ningbo Zhengmao Electronics Co., Ltd. (with a former name Ningbo Shitong Telecommunication Component Factory) is located in the south of Ningbo Zhejiang Province, China. Founded in 2002, our company specializes in researching and manufacturing Switching Spark Gaps, Gas Discharge Tube and others.
Switching Spark Gap (SSG) has a voltage mainly ranging from 110V to 800V with many advantages including complete varieties, good stability and long lifetime (it can be switched for over thousands of times to millions of times). This product is mainly used for ignition on HID ballast or street lamps, ect.
Gas Discharge Tube is anti-aging with high insulation resistance, small capacitance and quick respond. It is widely used for over-voltage protection of telecom and other electronics as well as lightning protection.
We are a member under identification of Quality Management System (ISO9001-2008QMS). Our products all meet the International standard of IEC61643-311, Recommendation Standard of ITU-T K.12 and the national standard GB/T9043-2008/ Communication Equipment Over-voltage Protection with General Technical Conditions on Gas Discharge Tube, etc.. Gas Discharge Tube has got the TüV certification of German and SGS certification, meeting the rules of RoHS.
Based on Quality, we aim at satisfying our customers by continually improving our product quality and service to meet your needs.
