CR52-BKPE-4U-DC 02351596 Integrated DC Chassis Components (NE40E-X3) -4u, Including Dual DC Power for H W

Product Description

Product Description
CR52-BKPE-4U-DC 02351596 Integrated DC Chassis Components(NE40E-X3)-4U,Including Dual DC Power for h w Description Part Number Model First Supported Version Remarks

Integrated DC Chassis Components(NE40E-X3)-4U,Including Dual DC Power	02351596	CR52-BKPE-4U-DC	V800R007C00	-

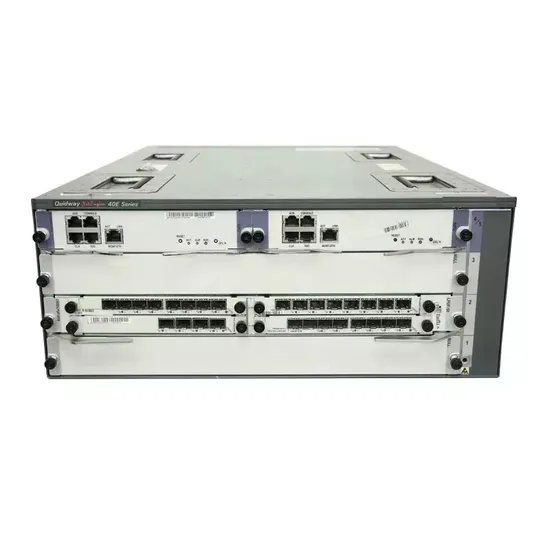

Detailed Photos


Product Parameters
Item Specification

Cabinet installation standards	Can be installed in a standard 19" 800 mm-deep cabinet. A H w 2.2 m-high N68E cabinet is used by default.
Dimensions without packaging (H x W x D) [mm(in.)]	175 mm x 442 mm x 650 mm (6.89 in. x 17.40 in. x 25.59 in.)
Chassis height [U]	4 U
Weight without packaging (base configuration) [kg(lb)]	15 kg (33.07 lb)
Weight without packaging (full configuration) [kg(lb)]	42 kg (92.59 lb)
Typical power consumption [W]	800 W (fully configured with LPUF-51s) 920 W (fully configured with LPUF-120s) 1239 W (fully configured with LPUF-241s)
Typical heat dissipation [BTU/hour]	2595.5 BTU/hour (fully configured with LPUF-51s) 2984.9 BTU/hour (fully configured with LPUF-120s) 4019.8 BTU/hour (fully configured with LPUF-241s)
MTBF [year]	27.44 year
MTTR [hour]	0.5 hour
Availability	0.99999792
Power supply mode	DC built-in
Maximum number of power chassis inputs	(1 channel/PEM)*2 PEM=2 channels
Rated input voltage [V]	-48 V/ -60 V
Input voltage range [V]	-38.4 V to -72 V
Maximum input current [A]	42 A/single-module
Maximum input cable diameter [mm²]	25 mm²
Front-end circuit breaker/fuse [A]	50 A
Noise at normal temperature (acoustic power) [dB(A)]	ETSI-compliance (<72dBA @ 23°C (73.4°F))
Number of slots	5
Number of service board slots	3
Switching capacity	1.08 Tbps
Redundant MPUs	1:1
Redundant power supply	1+1
Redundant fans	Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Long-term operating temperature [°C(°F)]	0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)]	-5°C to 55°C (23°F to 131°F)
Restriction on the operating temperature variation rate [°C(°F)]	≤ 30°C/hour (86°F/hour)
Storage temperature [°C(°F)]	-40°C to 70°C (-40°F to 158°F)
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Short-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)]	Less than 5000 m (16404 ft.)

Company Profile
Chongqing Chimu Technology Co., Ltd. was established in 2011, we have been engaged in this industry 11 years. Relying on 11 years of deep experience in the communication field and scientific and technological innovation ability, through the integration of multi-brand, full series of communication products resources, with a one-stop service model. Let the network better connect you and me, connect the world. In order to meet the needs of customers, we have eatablished a perfect supply chain system to provide super products with reliable quality and reasonable price.
We are devoted to offering Switches, Routers, Servers, Storages, LTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP. Our long-term aim is to provide users high-quality, efficient, economic, timely services. Looking forward to establish long-term and win-win business relations with you.
Our Advantages
A)Stable and Wide Supply Chain Systemwe have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.B)Competitive PriceWe ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.C) Safe and Easy Payment SolutionsWe accept all major credit cards, PayPal and wire transfer.D)Fast Delivery and ShippingFast, professional and reliable delivery.E)11+ Years Experiencewe have been engaged in this industry more than 11 years, we have rich industry experience.
Packaging & Shipping
FAQ
Q: How about your main products?
A: Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
Q: What brand of products do you offer?
A: We can supply all the brands you need.
Q: what services can we provide?A:Accepted Delivery Terms: FOB,CFR,EXW,FCA; Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY; Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash etc...
Q: Can we get free samples?
A: Sorry, it is not available, but you can pay for one.
Q. How can we guarantee quality?A:Always a pre-production sample before mass production; Always final Inspection before shipment;
Q: How about your delivery time?
A: Generally, it will take 1 to 10 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods?
A: Yes, We have professional engineer to test all devices before shipping.
Q:How about the MOQ?
A:1 piece

---
