Density/Consistency HD Pulping Ceramic Cone Density Heavey Reject for Paper Mill High Concentration Cleaner

Product Description

Stock Preparation Equipment High/Middle/Low Density Cleaner for Pulp Making System in Paper Mills
Product Description
1. This high-consistency cleaner is used for removing heavy impurities, reducing the wear of the next types of equipment, improve the quality of pulp material.
2. HT series high consistency cleaner can eliminate heavy impurities larger than 3mm in diameter from recycled paper stock.
As a piece of coarse screening equipment, it is usually downstream equipment of the hydra pulper.
3. The Cleaner can also be installed as an important piece of equipment to ensure the operation of downstream processing types of equipment.

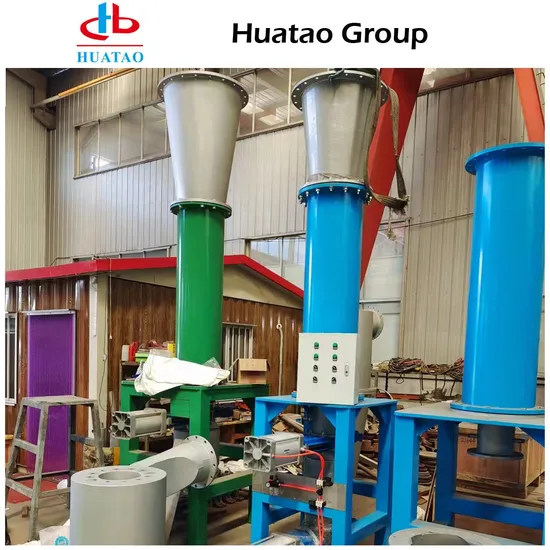

High-Density Cleaner / High Consistency Cleaner
It can eliminate heavy impurities larger than 3mm in diameter from recycled paper stock.As coarse screening equipment, it is usually downstream equipment of hydrapulper. It can also be installed as an important piece of equipment to ensure the operation of downstream processing equipment.

Low Density Cleaner, Low Consistency Cleaner, Middle Density Cleaner
HT series low-consistency cleaner is suitable for cleaning fiber suspension with a consistency of 0.4-1.2%.
It can efficiently remove light impurities, hot melt impurities, heavy impurities, pulp rejects, etc. In addition, it can also remove foam plastics, chips
fragments., ink particles, and air efficiently, which results in purifying stock in the approach system prior to the paper machine.
It can make the coarse screens in the recycled paper fiber efficient, simplify processing procedures and reduce power consumption.
Heavey Reject Cleaner
HT-1000 Low Consistency Cleaner is suitable for cleaning various kinds of pulp with a consistency of 1.6%-1.2%.
Heavey Reject Cleaner Design Features:
The working consistency of the Low Consistency Cleaner is as high as 2.5%, hence the number of cleaners is reduced accordingly. It is suitable for meeting the requirements of high-capacity pulp-making equipment.
The bottom part is equipped with an axial flushing water device, it can control the coarse rejects consistency individually and control the fiber loss efficiently. By diluting the coarse rejects, there will no appear blocking phenomenon in the pro- cess of reject discharging in every stage.
Product Parameters
Cleaner Technical Specification

Type	HT-11	HT-12	HT-13	HT-14	HT-15	HT-16	HT-17
Throughput(L/min)	800-1200	1400-1800	2000-2800	3000-4500	5000-6000	6500-8000	9000-12000
Inlet Consistency(%)	(H)2.5-5 (M)1-2.5
Inlet Pressure(MPa)	0.15-0.35
Reject	Auto & Manual

Detailed Photos
Other Type Cleaners

Our Professional Team

---
