High Precision CNC Milling Cutting Drilling Tapping and Engraving Vertical Machining Center CNC Machine

Product Description

High speed carving machine
Features:
1.Integral casting machine body, quenching aging treatment, the overall stability of the machine tool, high strength, stable and reliable precision.
2.The machine tool sheet metal adopts the overall design and installation method, so that the machine tool has a better closed processing environment. External circulation cutting oil processing method to ensure a clean and tidy factory environment.
3.The spindle system of the machine tool adopts constant-power and high-speed electric spindles with a maximum speed of 2000rpm. Important parts have been strengthened. The world-renowned brand NSKP-grade spindle special bearings and high-quality high-temperature and high-quality lubrication are used. The entire spindle is at a constand temperature. After the assembly is completed under the conditions, all have passed the computer balance correction and running-in test, so that the whole set of electric spindle has a long service life, high precision and strond reliability.
4. The ball rods of the X.Y.Z three-axis transmission of the machine tool are all C-class double-nut pre-tightened ball screws, and the double nuts are automatically anti-backlash. X.Y.Z are all connected by direct couplings, which have strong transmission rigidity, high accuracy and stability.
II.Technical Parameter

Item	Item	Specification	Unit
Stroke	X axis(left and right stroke)	600	mm
	Y axis(front and back stroke)	500	mm
	Z axis(up and down stroke)	300	mm
	Distance from spindle end surface to worktable surface	50*350	mm
Workbench	Work table size	600*500	mm
	T-slot (number * size * spacing)	5*25*100	mm
	Max weight of workbench	200	kg
Spindle	Spindle taper(Model/Installation size)	ER25
	Spindle speed	24000	rpm
Motor	Spindle motor	5.5	KW
	X axis motor	850	W
	Y axis motor	850	W
	Z aix motor	850	W
Feed rate	Max cutting feed rate of three axies	12	m/min
	Three-axis rapid movement	24	m/min
Precision	Positioning accuracy	±0.005/300	mm
	Repeatability	±0.005/300	mm
Specification	Weight	3000	kg
	Dimension	1900*1800*2400	mm

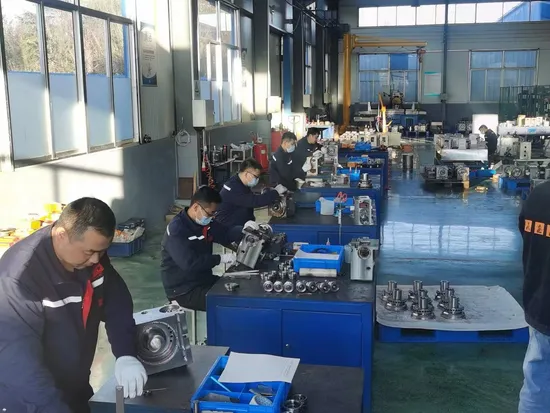

III.Production workshop
IV.Package and Loading
V.Certificate:
our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
our company:
Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions.
We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.
In the future, we will continue to pay attention to the needs of users, constantly improve the professional level, the quality of science and technology. Win the market with the quality. We are willing to join hands in creating our brilliant future.

---
