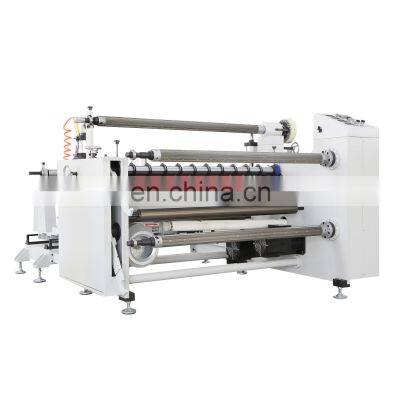

rolled laminated tape slitting machine

Product Description

Product Description
rolled laminated tape slitting machineSticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting MachineryFeatures:This machine employs photoelectric track and rectification system, and the magnetic powder clutch is adopted to control thefeeding and receiving tension. Main machine adopts frequency conversion speed regulation. The movement of the rubber coveredroller is controlled by the cylinder. Sticking and slitting be done at one time , sticking or slitting can be done separately.Accurate slitting, fast speed, easy to operate and maintenance . Purpose of rolled laminated tape slitting machine:1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,aluminum foil, OPP, PE, PVC, sheet, cloth, etc.2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc. Main Technical Parameter: data as below is for reference only , you can customize to other data if required ModelDP-650FQ rolled laminated tape slitting machineMax Feeding Width650mmMain Engineer Power2.2kwSpeed80m/minSize2400x1700x1300mmWeight1000kgRewinding Diameter600mmWinding Diameter450mmPrecision±0.1mmPower220V 50HZwaste rewinding motor partthis item can add the rewinding and unwinding air-shaft , add motor on it can running forward and reverse Touch screen optionalwhen you need constant tension control , we can use PLC and Touch Screen to control the operation if required Anti-sticking guiding roller optionalwhen you want to slitting some with Low viscosity adhesive rubber tape / paper tape etc , can choose use this kind guiding rollerelectric box of slitting machine the slitting machine can choose PLC control the PLC we use is Mitsubishi brand with tension control board with frequency controlcutting blade part have protective coverto keep operation safety , when you setted well the cutting blade , please cover the protective cover DIFFERENT ANGLE OF MACHINEBELOW to show you our standard machine different angle viewCharatertistics and Functions1.This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing used for feeding andreceiving materials.2. Imported magnetic powder clutch is adopted to control the tension.3. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectificationcontrol.4. Automatic detection, rectification and metering can be realized.5. It is characterized be accurate slitting, fast slitting speed, ease of operation and maintainPurpose for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery :1. It is applicable for the slitting tooling of industrial adhesive tape, electronic material, protective film, copper foil,aluminum foil, OPP, PE, PVC, sheet, cloth, etc.2. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.Features for Sticker, Label, Paper, Film, Foam, Non-Woven Roll Slitting Machinery1. The max width: 650mm / 1300mm / 1600mm2. The minimum slitting width: 8-25mm3. Material thickness range: 0.05-3mm4. Tolerence: 0.2mm, Precision: 0.1mm5. The speed: 80m/min6. Under CE and ISO7. Manufacturer experience: 12 years8. Export experience:10yearsUnwinding part description 3 inch air-shaft for unwinding - can optional of 6 inch unwinding shaft too Magnetic powder brake 100N also can be 150 or 200 that as required EPC include the controller , driver and sensor laminating and pulling material part the up part unwinding is optional to use or not when just one material slitting , then it not use and when two material unwinding, it is function of cold laminatingSlitting part and waste trimming partthe blade size upwards is standard of 1300mm machine size , other larger diameter also optional and down part can be Nylon roller optional when need slitting EVA sponge mterials slitting blade 8 sets is standard , you can buy more when required and minimum slitting width 10mm is optionalRewinding part and the operation panelthe rewinding air-shaft diameter 1 inch and 2 inch are optionaland slip shaft optional

---
