High Quality Whole Set Potassium/Sodium Sulfate Production Line

Product Description

Product Description

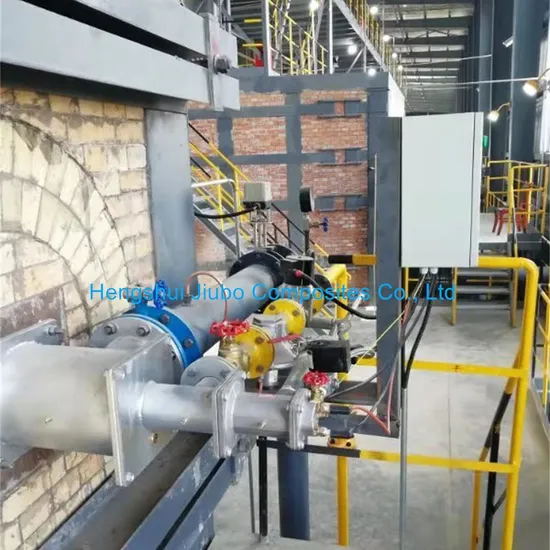

This technology is one of most advanced production methods of potassium sulfate--- Mannheim Process method. The core is updated new reaction furnace based upon the basis of dry baking method to produce the potassium sulfate. Under the support of the special equipment, it has resolved the abrasion and the corrosion under the condition of high temperature and strong acid and the process problem of continuous output. Comparing with the similar equipments from foreign countries, its outstanding characteristics are less investment, short building duration (four to six months), high atomization, reliable quality, high heating efficient, high output, and environment protective. The design, fabrication, installation, production process, inspection and testing of this whole set of technique and equipment, are completed by ourselves. We have successfully exported the whole set of equipment and technical know-how to overseas firms in Philippines, Indonesia, India, Egypt, Saudi, brazil etc.Reaction process are: reaction temperature is 510-560ºC, feed KCL and H2SO4 to reaction chamber properly, both will be mixed and reacted to generate K2SO4 and HCL gas. HCL gas be sucked by fan continuously and keep reaction chamber is little negative pressure, finished K2SO4 be moved to cooling propeller continuously to cooling and crushing, then goes into air-sealing propeller, be moved to drag conveyor, through crushing and screening, will be sent to storage silo.
Product Parameters
One furnace capacity is 10,000 t/y K2SO4 and 12,000 t/y hydrochloric acid (31% HCl)

Item	Powder			Granule
	Premium	1st class	Qualified	Premium	Qualified
Mass fraction of soluble potassium oxide (K2O) %, ≥	52	50	45	50	45
Mass fraction of sulfur (S) %, ≥	17.0	16.0	15.0	16.0	15.0
Mass fraction of chloride (CL¯)% , ≤	1.5	2.0	2.0	1.5	2.0
Mass fraction of water(H2O)%, ≤	1.0	1.5	2.0	1.5	2.5
Mass fraction of acid(calculated with H2SO4)% ≤	1.0	1.5	2.0	2.0	2.0
Mesh size, b(particle size 1.00mm-4.75mm or 3.35mm-5.60mm)%, ≥	_	_	_	90	90

Company Profile

Hengshui Jiubo Composites Co., Ltd.is a company specialized in production andsales of complete sets of chemical equipment, complete sets of fiberglass productproduction lines, and meantime manufacture composite material and SMC productsWe have got the Certificate ofmanagement system ISO9001, ISO14001, ISO45001and SGS certificate. Our Production line and products have been sold to all over theworld, including the United States, Canada, Australia, Brazi, Japan, Germany, RussiaIndia, Malaysia, Indonesia, Egypt and other countries, winning the support and trust ofnew and old customers.

Main products: FRP tank and chemical equipment High, middle, low pressure FRP pipe FRP small-scaled wastewater treatment tank FRP cooling tower FRP pultrusion, molded series products FRP polymer electrolytic cells S/F, F/F double-wall oil fuel storage tank Whole set of computer control filament winding machine Whole set of FRP pultrusion machine Whole set of FRP molded hydraulic press Whole set of FRP grating molded machine
Hengshui Jiubo Composites Co., Ltd. not only have manufacture ability, but also has design ability of material, structure and products, our company can provide customers with technical advice, supply of goods and material, transportation, installation supervision etc service.

FAQ
1.Are you factory or trade company?
We are manufacture.
2.What's the guarantee, in case the water tank breaks down?
The water tank has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback.Parts will be replaced for free if the problems are caused by quality fault.

3.How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required .

4.How long is the delivery time?
For standard water tank less than 100m3, it would be 7-10 days; For non standard water tank and customized water tank according to client s specific requirements, it would be 15 to 30 days.

5.How's the payment?
Telegraphic Transfer(T/T). L/C at sight .

6.Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

7.How is the packing?
Solid Seaworthy plywood Box Package with Steel Belt Save space as much as possible for container loading.

---
