Hgk-5 Adjustable Turning Rolls Welding Euipment Welding Tool Automatic Welding Machine

Product Description

Product Description Offering the widest variety and capacity ranges of turning rolls in the world,Fengwei always has a fit for your application. Variable speed powered rotation with constant or variable wheel centerline settings are available.
Rubber, Steel, Urethane, and Micarta (phenolic) wheels are also available. Traditional, Unitized, Self-Adjusting (SA), Trac-Tred®, Turbine, and Tilting rolls are just some of the models we offer.
Manual or powered mobile sub-base cars can be included for quick adjustment of varying vessel lengths. Special engineered turning rolls are always available.

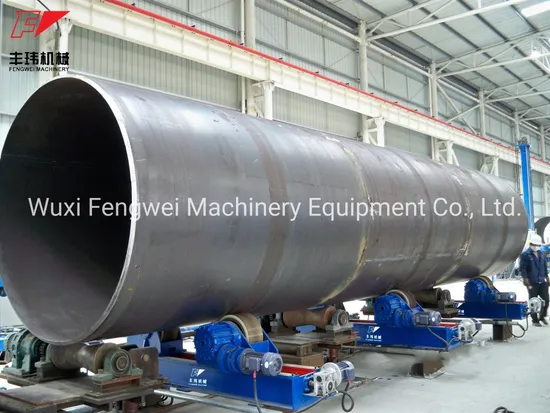

HGK Adjustable Turning Rolls mainly consist of powered rotator, idle rotator, driving reducer system, and control system etc. It is mainly used for longitudinal and circular seam welding of cylinders linked with submerged arc welder.
Technical Parametre

Type	Max load weight(kg)	Size limit of suitable product(mm)	Diameter and width of the wheel(mm)		Wheel linear velocity(m/h)	Power of motor(kw)	Adjustable Mode for Space	Setting Method
			Robber rollers	Meter rollers
HGK-2	2000	¢200-1200	¢200*100	2*¢190*16	6-60	2*0.18	Manual screw arbor control or conventional power grading	Variable frequency stepless speed regulation or dc stepless speed regulation
HGK-5	5000	¢250-2300	¢250*100	2*¢240*20	6-60	2*0.37
HGK-10	10000	¢300-2800	¢300*120	2*¢290*25	6-60	2*0.55
HGK-20	20000	¢500-3500	¢350*120	2*¢340*35	6-60	2*1.1
HGK-40	40000	¢600-4200	¢400*120	2*¢390*45	6-60	2*1.5
HGK-60	60000	¢750-4800	¢450*120	2*¢440*60	6-60	2*2.2	Conventional power grading control
HGK-80	80000	¢850-5000	¢500*120	2*¢490*70	6-60	2*3
HGK-100	100000	¢1000-5500	¢500*120	2*¢490*80	6-60	2*3
HGK-150	150000	¢1000-6000	/	¢620*220	6-60	2*4
HGK-250	250000	¢1100-7500	/	¢660*260	6-60	2*5.5
HGK-400	400000	¢1100-7500	/	¢750*320	6-60	2*7.5
HGK-500	500000	¢1100-7500	/	¢750*400	6-60	2*11

---
