Product Details
Product Description
Product Description
Sintered filter mesh is a kind of most widely used filtration material. It has 3 layers to 8 layers in total. The commonly is 5 layers. The material of sintered filter mesh can be stainless steel wire, monel wire, inconel, and other wires.
Multi-layer sintered filters are several multilayers weaved or perforated stainless steel wire mesh overlapped together and then sintered in the vacuum sintering furnace. We can roll the sintered filer into a tube shape and welding the seam forming sintered tube filer. Due to the stainless steel material, the sintered metal mesh tube filters have excellent properties of resistance corrosion and resistance high-temperature. It is a common use industrial filtration tube for liquid and gas filtration, used in petroleum, polyester, pharmacy, chemical fiber, food and beverage, and water treatment.
Sintered filter mesh is a kind of most widely used filtration material. It has 3 layers to 8 layers in total. The commonly is 5 layers. The material of sintered filter mesh can be stainless steel wire, monel wire, inconel, and other wires. The materials are woven or perforated into meshes and then the meshes will be vacuum sintered into sintered filter mesh.

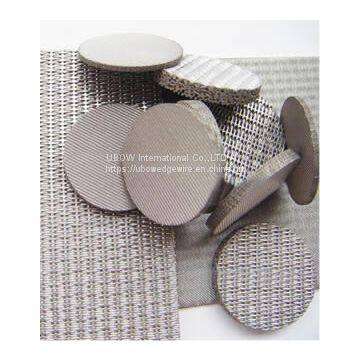

The five layers of sintered filter mesh are cover layer, filtration control layer, dispersion layer, support skeleton layer, and skeleton layer. Sintered filter mesh can be filter discs, filter tube or other filter types.
Specifications of Stainless Steel Sintered Multi-layer Fabricated Filter:
| Structure | Filter rating (u) | Thickness (mm) | Weight (kg/ m2) | Porosity (%) |
| Filter layer + 60 | 2-100 | 0.5 | 1.6 | 60 |
| 60 + Filter layer + 60 | 2-100 | 0.7 | 2.4 | 56 |
| 50 + Filter layer + 20 | 20-200 | 1.0 | 3.3 | 58 |
| Filter layer + 20 + 8.5 | 20-250 | 2.0 | 6.5 | 58 |
| 60 + Filter layer + 40 + 20 | 20-200 | 1.0 | 4.4 | 44 |
| 40 + Filter layer + 20 + 16 | 20-200 | 1.7 | 6.2 | 54 |
| 30 + Filter layer + 60 + 20 + 16 | 20-200 | 1.9 | 5.3 | 52 |
| 80 + Filter layer + 30 + 10 + 8.5 | 20-200 | 2.5 | 8.8 | 55 |
| 50 + Filter layer + 40 + 20 + 40 + Filter layer + 50 | 20-100 | 2.0 | 7.4 | 58 |
Feature:
Material:
Stainless steel wire. 304, 304L, 316, 316L or custom
Copper wire
Brass wire
Monel wire
Inconel wire
Layer: 3 - 8 layers. The standard is 5 layers.
Thickness: 0.08mm - 8mm. Standard is 1.7mm.
Type:
Filter disc
Filter tube
Filter element
Filter plate
Working temperature: -200°C - 1000°C
Application:
1) Distribution and cooling material in high temperature;
2) The material used for gas distribution and fluidization bed;
3) Material requiring high precision, stable performance in high temperature;
4) High pressure backwashed oil filter,etc.
>>
