Wldh 100 Dry Ribbon Blender Chemical Powder Mixer Mixing Machine

Product Description

Welcome to visit CapsulCN factory!
Why Choose Us:
1. 16 years professional pharmaceutical machinery manufacturer and supplier.
2. 3 Years Warranty, 14 Days Delivery,Factory Price.
3.12680 m2 factory,Own R&D Team
4. Free design service,free professional solutions.
5.Passed ISO 9001,CE,SGS,Intetek certificates .
6.Provide ****** quality and delivery guarantee services.

Product Description

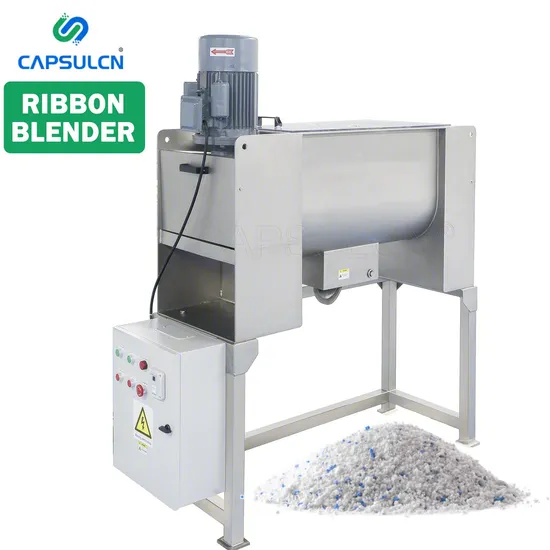

WLDH- Horizontal Spiral Ribbon Mixer The Ribbon Mixer Series consists of five high performance trough format mixing machines for combining powders or pastes into a homogenous end product. They range in size from 100 litres capacity to 5000 litres. These blending machines use a thin mixing blade and carefully controlled motion to ensure that the materials are thoroughly combined, without dead spots. With stainless steel contact parts that are easy to clean, and mixing blades that are fully sealed at each end to avoid leakage, they are suitable for both dry powders and semi-liquid materials across a range of applications including the food and chemical industries.
Ribbon blenders are convective mixers. The mixture movement is forced by the rotation of the ribbon which is circulating the product in 2 directions: the ribbon is actually made in 2 parts, 1 external ribbon circulates the product in 1 direction while another ribbon located inside the 1st one moves the product in the other direction (it can be possible to have even more complex profiles to attempt optimizing the mixing efficiency and thus the mixing time). By mixing enough time, those 2 axial movement, coupled with some radial movement (blades "cutting" the material when rotating), will allow to reach the required degree of homogeneity. The twist of the helix must be studied by the manufacturer so that the direction in which the outer ribbons is pushing is towards the outlet valve of the mixer, if it is not the case, good discharging rate of the mixer cannot be achieved.
Discharging mode:
big open structure, using pneumatic materials has the advantages of fastdischarging, no residual; Adopt high fineness of materials or semiliquid materialusing manual buterly valve or pneumatic buterly valve. Configurable heating orcoling jacket, Heating mode has electric heating and heat conduction oil heatingin two ways. Cooling process can be directly to infuse water jacket and clip hotswap area is large, the cooling speed. Small type mixer adopts reducer directmode, simple structure, high operating rlialily. maintenance is convenient. Largenumber mixer adopts pulley drive the cycloid speed reducer drive, belt transmis-sion of elastic connection has the advantage of the overload protection whendriving part.
Main Application
Main uses of mixer
The product has a wide range of applications, and can mix and stir powder and powder, powder and liquid, especially paste, viscous or larger specific gravity materials (such as putty, real stone paint, metal powder and other products) .
Detailed Photos
FIOW CHART :

Specifications

Model Total Volume(L) Load Coefficient Power(KW) Dimensions(mm) Weight (kg) WLDH-100 100 0.4-0.8 3 1190x740x770 330 WLDH-300 300 0.4-0.8 4 2030x630x980 720 WLDH-500 500 0.4-0.8 7.5 2320x730x1130 980 WLDH-1000 1000 0.4-0.8 11 2800x920x1320 1700 WLDH-1500 1500 0.4-0.8 11 3180x1020x1550 1800 WLDH-2000 2000 0.4-0.8 15 3310x1120x1640 2100 WLDH-3000 3000 0.4-0.8 18.5 3750x12290x1820 3000 WLDH-4000 4000 0.4-0.8 22 4220x1400x1990 3980 WLDH-5000 5000 0.4-0.8 22 4220x1500x2100 4620

( Don't Worry! We have several Models. We can recommend you according to your requirement. Contact us>> )
Company Profile

Zhejiang CapsulCN Machinery Co, Ltd is specialized in the research, production andrelevant service in the automatic packing machines of pharmaceutical, medical andfood industries.It is a member of National Equipment Association, High-tech Enterprise of Zhejiang Province, and the director unit of Wenzhou Private Management Economy Promotion Association. In 2010, we had a new factory located in Wenzhou City, Zhejiang Province, with a covering area of more than 13,000 square meters. building area of 15,000 square meters, and workshops of 10 meters high. It greatly improved our production capacity. As one of the leading professional total-solution suppliers for pharmaceutical machines, we combine German technology with Chinese manufacturing advantages,and we produce high-end equipment to exacting European standards in our modern Chinese facility. we are committed to providing our global customers with:
· Quality pharmaceutical machines
· Professional customer support and after sales service
· All-inclusive and easy to use technology COMPUTERIZED NUMERICAL CONTROL
OUR CUSTOMER FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Rui 'an Zhejiang province. We warmly welcome you to visit our factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you on-line by video chatting.
Q: How about the after service and guarantee period?
A: We offer 3 years warranty since the arrival of the machine. Technical support is available 24/7. CapsulCN highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.

---
