Electric Mill Roll Stand Machine for Corrugated Board Production Line

Product Description

Product Description Specification:

Working Width	YK-1400SFL 1400mm	YK-1600SFL 1600mm	YK-1800SFL 1800mm
Heating method	Steam heating
Design speed	100-120m/min
Economical speed	80-100 m/min
Compress-air pressure	0.4-0.9MPa
Flute type	Standard flute	UV Flute
single facer line	Standard spec.	A,B,C,E,F
	For other types and models, we can produce as customers' requirements.

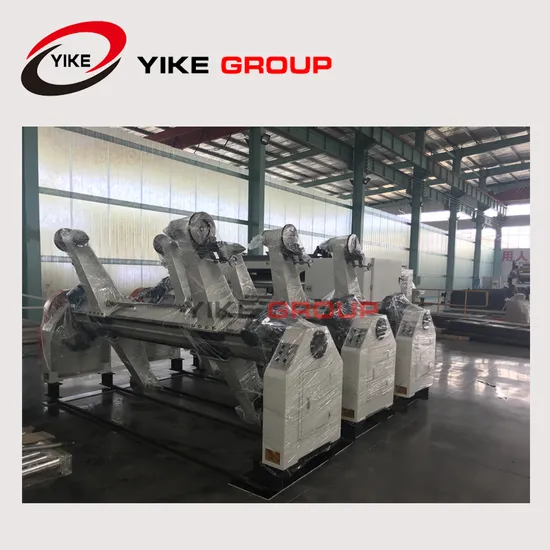

Electric mill roll stand
Structural features:
1, Symmetrical structure can also install two bundles of paper at the same time, Paper can be used for non-stop for a job; Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
2, each shaftless mill roll stand is equipped with two pieces of paper guide, two sets of the paper car; paper guide the use of channel 14 and the guide post-weld, paper car adopt 10mmwelded stell, the length of the track is 4500mm.
3, manual disc brake, add screw following
4, electric elements centralized control the electric elements, expand chuck.

Technical parameters:
1, Back stands action mode: mechanical electric operation
2,the range of paper jams:maximum:1600mm minimum:600mm
3, the diameter of paper jams:maximum:¢1400mm minimum:¢400mm
4, Unilateral maximum load:maximum2000Kg
5, Powered motor parameters:
Paper jams motor550W×4set 380V 50HZ short(S2)working standard
lift motor 1.5Kw 380V 50HZ short(S2)working standard
