High Definition LED Video Wall Full Color Indoor Outdoor for Advertising Billboard Display Screen with Large Format Giant 200 in Inch Screen Size

Product Description

We focus on all kinds of led display screen manufacturing included indoor outdoor led display, rental led display, flexible led display, transparent led display, dance floor led series, HD resolution led display, perimeter led display,stadium sport led display screen, led sign, led display board and led billboard.
Part 1: Product Mainly Features
P1.5 P1.8 P2.5 P3 Indoor front service LED Video Display Screen Wall Mounted for Advertising is popular for indoor advertising media, such as in airport, shopping mall, shows etc,
- light weight design,
- HD resolution with high contract rate,
- High image quality,
- hot sale pixels are P2.5mm and P3mm

Pixel Pitch	P1.5 P1.8 P2.5 P3
Brightness	800nits
Cabinet Size	640x480mm
Max. Power Consumption	150W/panel
Driver IC	Constent current
PSU	5V 40A
Refresh Rate	> 3840HZ

Part 2: Detail Images
Part 3: Material Quality Level
All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

Part 4: Technical Specification

Item	P1.5 P1.8 P2.5 P3 Indoor front service LED Video Display Screen Wall Mounted for Advertising hot sale
Pixel Pitch	1.5-3mm
Pixel Density	109688-422500 pixels/M2
Pixel Configuration	1R1G1B
LED Type	SMD 3 in 1
Module Size	320x160mm
Module Resolution	104x72-208x104 pixels
Min.Viewing Distance	1.5-3meters
Brightness	800 nits
Average Power Consumption	400 W/M2
Scan Mode	Constant current
Protection Level	IP31
Cabinet Size	640x480mm
Color Temperature	The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements
Input Voltage	AC110-240V, 50Hz/60Hz
Refresh Rate	> 3840Hz
Color	65535 Levels
Horizontal/Vertical viewing angle	<140°
Gray Scale	16 bits
Effective Communication Distance(without relay)	<100 meters
Lifespan	≥100,000 hours
Environment Temperature	Storage: -40°C~+85°C , Operation: -20 °C~+45°C
Blind Spot Rate	<0.0001(led display industry standard is less than 0.0003)
Control Mode	Video frequency synchronization

Part 5: Installation methods, available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.
Part 6: Packing information by plywood cases, packing well and easy to load
Part 7: Certificates
ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
Part 8: About LEDventure

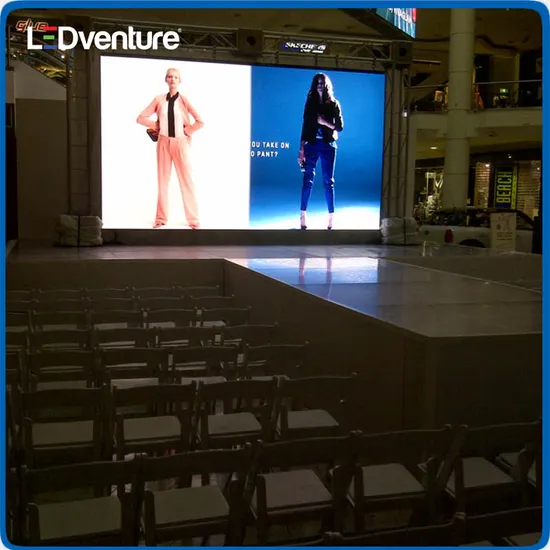

Part 9: LED Display Screen Installation Cases
Most of our led display exported to Europe with high standards, and small percent to USA and Asia

---
