China Plastic Products Inject/Injection Mould/Molding Machine/Machinery 700ton

Product Description

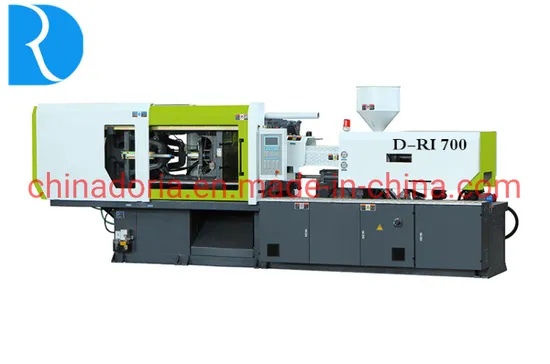

Specification of D-RI700 plastic injection moulding machine
1. Product details:
2. Technical data of D-RI700

Model Item	D-RI 700
Screw diameter(mm)	90
Injection pressure(Mpa)	195
Shot weight(PS) (g)	2438
Screw L/D ratio	20:1
Screw stroke (mm)	415
Screw speed(r.p.m)	5-120
Injection rate (cm3/s)	545
Plasticizing capacity(g/s)	72
Clamping stroke(tons)	700
Mould clamping stroke (mm)	900
Max. daylight opening (mm)	1900
Mould thickness (Min.-Max.) (mm)	400-900
Space between tie-bars (mm)	920*920
Hydraulic ejection force (tons)	18
Hydraulic ejector stroke (mm)	285
Max. pump pressure(Mpa)	16
Motor power(KW)	37+37
Heater power(KW)	30
Temperature control zones	6+1
Tank capacity (L)	1300
Machine dimension(L*W*H)	9700mm*2800mm*3290mm
Machine weight(ton)	35

3. Specifications
Injection molding machine
3.1.Big tie bar space and shot weight capacity
3.2.Most famous component parts
3.3.Perfect after-service
4.FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement

5.CONTROL SYSTEM
All-digital control system uses dedicated controller, multiple CPU processing division,
a mufti-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

6.HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multilevel pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.

7.SERVO SYSTEM
After receiving the pressure and flow instruction from computer controller, the servo driver will compare it with the actual pressure and flow feedback, and rectify the difference by controlling the rotating speed of the servo motor. In this way, the control of injection molding is not only acurate but also fast, and the respectability of the products high as well.
8.Our Service
8.1Supply mode: the supplier factory delivery, simple packaging, the supplier agent consignments, the expense is payed by the buyer .

8.2Terms of payment: the buyer pay 30% of the total payment as the signing of the deposit, the contract comes into effect, pay the balance before shipment .

8.3Quality assurance: the equipment according to the enterprise standard implementation and mechanical guarantee period is one year, the main electrical appliances for half a year .

8.4Method of acceptance: equipment processing after the completion of delivery, the buyer sent to the factory acceptance, for commissioning, the buyer to provide raw materials for plastic material .

8.5Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) provide on-site installation guide;
B) responsible for the commissioning of equipment;
C) responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) one year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) provide technical advisory services for a long time

8.6Delivery date: the contract is signed and completed within 45 working days after receiving the deposit unit processing and manufacturing, with the conditions of the factory acceptance
9. Pictures workshop of machine:
10. Warehouse of machine:
11.Detail and certification of machine:
12. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
13. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
14. Contact us:
Tel: +86 15267630381

---
