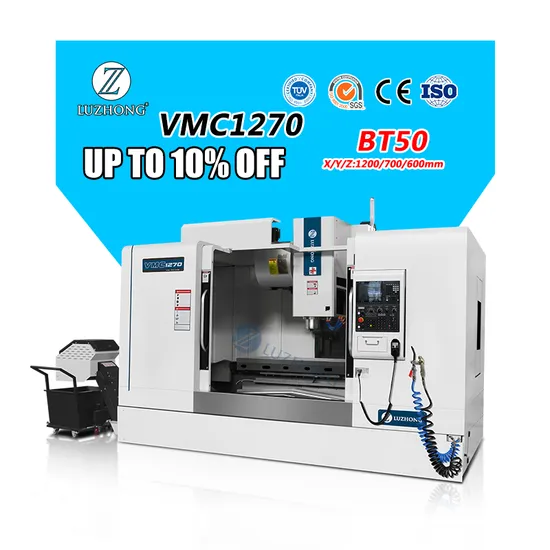

China metal cutting tools VMC1270 with 3/4/5 axis and CE/ISO certification

Product Description

China metal cutting tools VMC1270/1370 with 3/4/5 axis and CE/ISO certification Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Automatic lubrication system
Chip conveyor as optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Product Parameters
Product main technical specifications:

SPECIFICATIONS	Units	VMC1270	VMC1370
Table size	mm	1260*700	1360*700
X axis travel	mm	1200	1300
Y axis travel	mm	700	700
Z axis travel	mm	600	600
Max. worktable load	kg	1200	1300
T slot(number-width*pitch)	-	5-18*122	5-18*122
Max. spindle speed	rpm	6000	6000
Spindle taper	mm	BT50	BT50
Main motor power	kw	15/18.5	15/18.5
X/Y/Z rapid traverse speed	m/min	24/24/18	24/24/18
Cutting feed speed	mm/min	1-6000	1-6000
Guide rail type	-	X/Y axis linear rail Z-axis hard rail
Distance from spindle axis to column surface	mm	780	780
Distance between spindle nose and table surface	mm	87-687	150-750
Positioning accuracy	mm	0.0075	0.0075
Repeat positioning accuracy	mm	0.005	0.005
Tool magazine	-	Arm 24	Arm 24
Max. tool diameter	mm	112/200	112/200
Max. tool weight	kg	18	18
Machine weight	kg	10000	10500
Overall dimension(L*W*H)	mm	3400*2900*3000	3870*2900*3000

Machine Standard Details

MACHINE CONSTRUCT High strength high quality HT300 cast iron Y axis with 4 linear railways .	CONTROL SYSTEM Standard: GSK25i / KND1000 control
TAIWAN PRECISION SPINDLE 1. Taiwan BT50 Spindle 6000rpm with ring cooling 2. Passed dynamic balance ISO rating test	TAIWAN TOOL MAGAZINE 1.Taiwan OKADA arm 24 tool magazine . 2. tool change time only 2-3 seconds.
LEAD SCREW AND COUPLING 1 TAIWAN HIWIN famous brand lead screw, 2. lead screw bearing using SKFor NACHI bearing, 3. coupling YC directly connected	TAIWAN PRECISION LINEAR RAILS 1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class 2. Brand: HIWIN or PMI
TOOL UNCLAMP CYLINDERTaiwan spindle Tool unclamp cylinder	COUNTERWEIGHT Use a nitrogen balance cylinder to counterweight
AIR STORAGE TANK Air storage tank to ensure the stability of spindle tool change	STRONG CHIP PUNCHINIG Standard with strong chip punching function
AIR GUN AND WATER GUN High-pressure air guns and water guns	PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components
SCHNEIDERELECTRICAL COMPONENTS 1. with Schneidersafety electrical components 2. Quick plug as standard	AIR CONDITIONER with Industrial electrical cabinet air conditioner. Cooling the electric box better .
LUBRICATION SYSTEM HERG Automatic centralized lubrication device .	TESTING Each machine passed Renishaw laser interferometer testing and ballbar testing
BT50 MILLING CHUCK Standard with BT50 milling chuck .	LOCKING KNIFE BLOCK Standard with lock knife block

Machine Optional Details
Company Profile
Shandong Luzhong Machine Tool has :
More than 100,000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes.
30+ years CNC machine manufacture experience factory.
24 hours online service at any time.
Trade with customers in more than 150 countries around the word.
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC etc.
Support ODM OEM.
Warranty time is 18 months.
Shandong Luzhong Machine Tool Co.,Ltd. Has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries.
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines, more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
