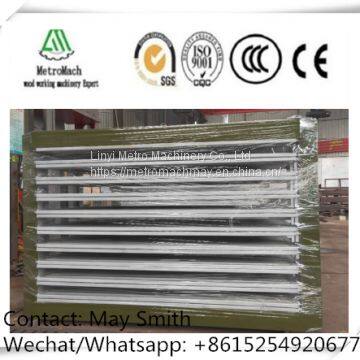

Woodworking Plywood Veneer Hot Press Type Seamless Pipe Dryer Machine

Product Details

Product Details

Product Description

Product Description
Veneer drying machine play a very important role in plywood production. The moisture content of final veneer is really critical. Compared with roller dryer, this kind of seamless pipe veneer dryer takes little space and rather low investment cost, it's more applicable for small size core veneers in small plywood machines.
Technical parameters
ModelJGBY214x8/10-15A
Direction of feedingHorizontal
Numbers of daylights15
distance between plates65mm
Platen materialSeamless pipe
Size of platen2800x1340x38mm
Number of cylinders2pcs
Diameter of cylinders180mm
Stroke of cylinders975mm
Pressurization<6.3Mpa
Empty closing time20seconds
Low pressure pump flowingabout 140L/min
Power5.5kw-4P
Machine size4630x1340x2300mm
Machine Weightabout 7000kg
