Basic Info.
Laser Cleaning Process
Non-Contact
Fiber Length
2m / Customized
Cooling Method
Air or Water
Operating Temperature
5 - 45 Celsius Degree
Scanning Width
10-110mm(Adjustable)
Power Supply
110/220V, 50/60Hz
Cleaning Efficiency
6 M2/H
Pulse Frequency
1-1000kHz
Transport Package
Plywood Case
Specification
405 x 118 x 460mm
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
41.00cm * 12.00cm * 46.00cm
Package Gross Weight
12.000kg
Product Description

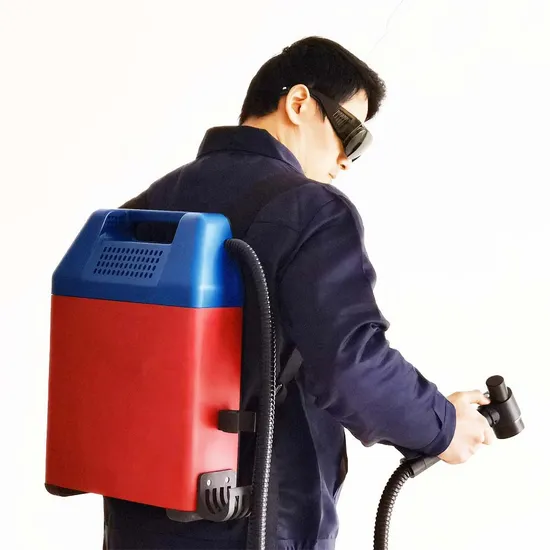

Backpack Laser Cleaning Machine
Features:
1.Two-dimensional laser cleaning with dual axis scanner, it is not easy to damage the substrate
2.Precision cleaning, realized selective cleaning of precise location and accurate size
3.No need any chemical cleaning liquid, no consumables, safety and environmental protection
4.Easy operation, realized automated cleaning by hand-held or robotic arm
5. Fast cleaning speed, high cleaning efficiency, saving time.
6. Stable laser cleaning system, almost no maintenance requirement
7. The cleaning head is extremely lightweight, 1600g only (not include delivery cable), and can be operated by hand for a long time
Specifications:
| Model | TXT-LC20B | TXT-LC50B | TXT-LC100B |
| Laser source | Fiber |
| Laser Power | 20W | 50W | 100W |
| Fiber cable length | 3 M | 3 M | 5 M |
| Laser Wavelength | 1064nm |
| Pulse Energy | 0.6 mJ | 1 mJ | 1.5 mJ |
| Pulse frequency | 1-2000KHz | 1-4000KHz | 1-4000KHz |
| Scanning speed | 0-7000mm/s |
| Cooling | Air cooling |
| Dimension | 300*160*450 mm | 400*118*460MM | 350*180*450 mm |
| Weight | 7Kg | 8.5Kg | 10Kg |
| Beam width | 10-70mm | 10-100mm | 10-175mm |
| Optional | Manual | Manual/Auto | Manual |
| Temperature | 5-40 ÂșC |
| Voltage | Single Phase 220V, 50/60HZ |
More choices
Laser cleaning is an eco-friendly process used to remove rust, paint, oxide and other contaminants from metal surfaces. Because of its efficiency, it is being used in a variety of applications.
>>
