618s High Precision Surface Grinding Machine Manufacturers Wholesale

Product Description

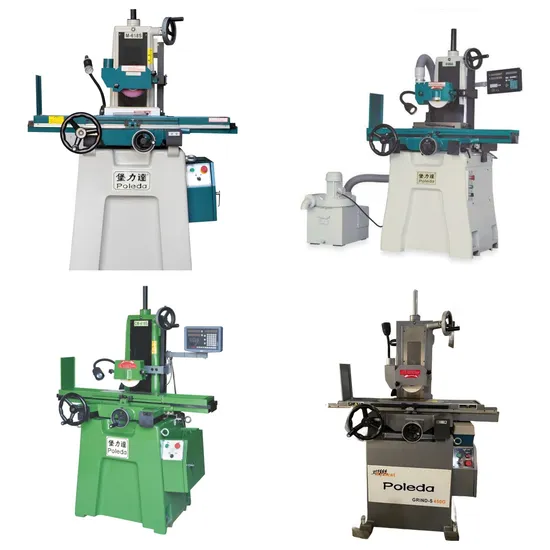

Surface grinding machine product introduction
Surface grinding machine is a grinding machine, is mainly used by the rotation of the grinding wheel to grind the Machined part, to achieve the required flatness. According to the shape of the table, surface grinding machine can be divided into two kinds of rectangular table and circular table. The main parameters of the rectangular table surface grinding machine are the width and length of the table, and the main parameters of the circular table are the diameter of the table. According to the different shaft types, surface grinding machines can also be divided into horizontal shaft and vertical shaft grinding machines.
Product Description
Product Parameters
Mechanical Properties
Machine Structure: Our machine boasts superior craftsmanship with main castings made from premium high-grade cast iron. Subjected to meticulous annealing treatment, these castings eliminate internal stress, ensuring unparalleled precision, exceptional rigidity, and prolonged machine lifespan. Slide Way: The dual V slide ways-both left/right and front-are coated with wear-resistant resin TI URCITE-B and precision-hand scraped, offering not just smooth and wear-resistant sliding but also perfect suitability for forming and grinding tasks.
Cylindrical Straight Spindle: Equipped with a P4 ultra-precision angular roller bearing, this spindle delivers low noise, minimal vibration, and high torque even at high-speed rotations. Ideal for heavy-duty cutting and diverse forming grinding applications.
Automatic Lubrication System: Our machine features a state-of-the-art circulating automatic lubrication system. Once the main spindle activates, the lubrication oil immediately starts circulating, ensuring forced lubrication for each screw and slide. This significantly reduces slide wear. An oil mirror is strategically placed above the column for real-time lubrication monitoring.

Product Name
Product Name		Grinding machine
Product model		M618/618/618S/618H
Product technical parameters
	1 Table size		150*450MM(6*18'')
	2 Maximum grinding length		475MM(18-3/4'')
	3 Maximum grinding width		160MM(6-1/3'')
	4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
	5 Standard disk size		150*350MM
	6 Left and right feed/manual stroke		485MM(19'')
	7 Front and rear feed/manual stroke		160MM(7'')
	8 Hand wheel feed (per turn)		5MM(0.2'')
	9 Hand wheel feed		0.02MM(0.001'')
	10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
	11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
	12 Spindle speed (50/60HZ)		2800RPM
	13 Spindle motor		1.5HP
	14 Weight (approximate)		800kgs
	15Machine size (L * W * H)		1350*1050*1850MM
	Grinding machine configuration	Accessories name and specification		quantity
	Standard parts for machine tools	1,Grinding wheel and flange		1
		2,Wheel removal wrench		1
		3,Hexagonal wrench		1
		4,Leveling screws and foot pads		1
		5,Grinder guide oil		1
		6,Toolbox and adjustment tools		1
		7,Hanging rings		1
		8,Grinding wheel		1
	Special parts for machine tools	9,Grating electronic ruler		1
		10,Detail disk		1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) is determined by your specific requirements, such as color and logo customization. For standard items in stock, the MOQ is just 1 set.
2.How to control the quality of the products?
A. Quality is our top priority. We have stringent quality control systems in place to ensure high standards. Our guiding principle is to deliver better quality, better pricing, and better service.customers better quality, better price, and better service.
3.What's your main products of your company?
A: We specialize in a wide range of machinery, including CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and more. Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works, FOB, CFR, and CIF are all acceptable trade terms. FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T, 30% initial payment upon order, and the remaining 70% balance before shipment.
6.What CNC system do you use?
A: We offer a variety of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice is yours.
7.How can I choose the most suitable machines?
A: Provide us with your product drawings and application details, and our experts will recommend the most suitable machinery to meet your needs.
8.what kind of package do you offer?
A. We typically use plywood cases to ensure all goods remain in excellent condition. Customized packaging options are also available upon request. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes, we can provide both OEM and ODM services to meet any customer's requirements. 10.How about the warranty?
A: We offer a one-year warranty from the date of delivery. Even after the warranty period, we provide lifelong service for our machines.

---
