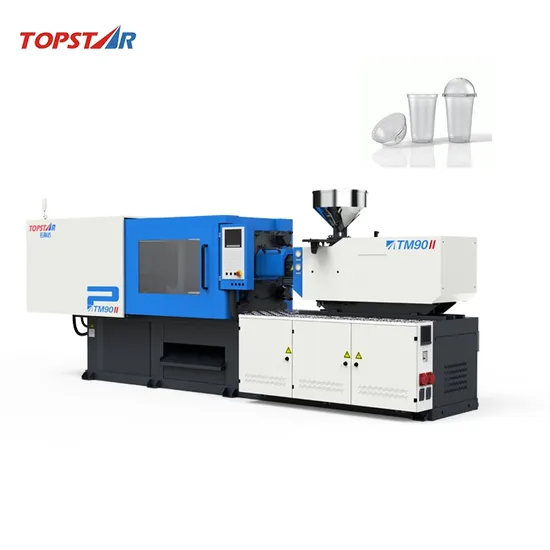

High Speed High Precision TM90II Injection Molding Making Machine for Bluetooth Headset

Product Description

Topstar 90-470Ton Horizontal Injection Molding Machine for Households Plastic Products

Product Description:
The TM II series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Strong engine, efficiency increase.
2. Configuration promoted, stable to use.
3. Optimized design, energy saving and reliable.
4. Highly integrated, accurate and efficient.
Accessory Introduction:
1. Standard KEBA controller, PHASE motor, DELTA drive, with self-developed control program, more precise production control.
2. Standard configuration of plating screw and temperature control of the offload, higher production efficiency, and wider application range of rubber materials.
3. Optimized clamping design, higher strength and more stable.
4. Diagonal double carriage cylinders and linear guide, more accurate and stable injection.
5. Pre-plasticizing adopts proportional back pressure control, easy to operate. Multi-stage back pressure setting can be realized, with higher precision and improved plasticization quality.
6. Precision PVD alloy screw head set, adapt to a wider range of plasticizing requirements.
Parameter Table:

INJECTION UNIT	UNITS	TM90II
Screw Diamete	mm	32	36	40
Screw L/D Ratio	L/D	22.5	20.0	18.0
Screw Stroke	mm	150	150	150
Shot Volume	cm3	121	153	188
Shot Weight(ps)	g	110	139	172
	oz	3.9	4.9	6.0
Injection Pressure	kgf/cm3	2393	1890	1531
Injection Rate	cm3/s	96	122	151
Injection Rate	mm/s	120	120	120
Screw Speed	rpm	260
Nozzle Contact Force	t	4.2
Nozzle Stroke	mm	260
CLAMPING UNIT	UNITS	TM90II
Clamping Force	t	90
Opening Stroke	mm	330
Platen size(H×V)	mm	530*530
Space Between Tie Bars(H×V)	mm	360*360
Mlould Thickness (Min)	mm	125
Mlould Thickness (Max)	mm	400
Max. Daylight	mm	730
Ejector Force	t	4.2
Ejector Stroke	mm	120
Locating Ring	mm	100
POWER/HEATING UNIT	UNITS	TM90II
System Pressure	kgf/cm3	175
Pump Power	kw	13
Heating Power	kw	7
Number of Temp Control Zones	-	3+1
OTHERS	UNITS	TM90II
Machine Dimensions(LxWxH)	m	4.65*1.23*1.88
Oil Tank Capacity	L	150
Machine Weight	t	3.3
Platen Dimensions
Platen Dimensions

Note: Due to the continuous development of technology, improvement and update of design, the above specifications are subject to change without prior notice.

---
