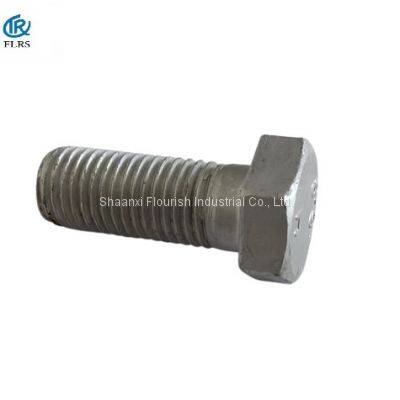

Hot Dip Galvanized Hex Head Bolt High Strength Carbon Steel Bolt Full Thread

Product Details

Product Description

Product Description
Name:Material:Surface:Standard:Head Type:Thread:High Light:

Hex Head Bolt	Carbon Steel
Hot Dip Galvanized	ANSI/ASME, JIS, EN, DIN, BS,GB, SH, HG, IFI, ISO
Hex. Head	Full Thread
Hot Dip Galvanized Hex Head Bolt, Full Thread Hex Head Cap Bolt, Hex Carbon Steel Bolt

Hot Dip Galvanized Hex Head Bolt For High Strength / HDG. Carbon Steel Hex Head Bolt Full Thread
Hex. bolt: A type of fastener consisting of two parts: the head and the screw (cylinder with external thread), which is used to fasten two parts with through holes in conjunction with a nut.
Hex. bolts
This form of connection is called a bolt connection. If the nut is screwed off the bolt, the two parts can be separated, so the bolt connection is a removable connection.
The performance level of bolts for steel connection is 3.6, 4.6, 4.8, 5.6, 6.8, 8.8, 9.8, 10.9, 12.9 and other 10 levels, of which 8.8 and above bolts are made of low carbon alloy steel or medium carbon steel and heat treated (quenched and tempered), commonly known as high strength bolts, and the rest are commonly known as ordinary bolts.

d	M4	M5	M6	M8	M10	M12	M14	M16	M20	M24	M30	M36
P	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	3	3.5	4
s	7	8	10	13	16	18	22	24	30	36	46	55
k	2.8	3.5	4	5.3	6.4	7.5	8.8	10	12.5	15	18.7	22.5

---
