US$5,100.00-6,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Metal
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Certification
GS, CE, ISO 9001
Bar Through Diameter
60mm
Max. Swing Over Bed
250mm
Max. Swing Over Carriage
130mm
Max Length of Processing
Chuck 120/Collet 200
Range of Spindle Speed
50-2500rpm
Power of The Main Drive Motor
4kw
Overall Dimensions(L×w×h)
1600*1000*1600mm
Transport Package
Wooden Case
Specification
1600*1000*1600mm
Production Capacity
1000/Year
Packaging & Delivery
Package Size
1600.00cm * 1000.00cm * 1600.00cm
Package Gross Weight
950.000kg
Product Description
Product Description

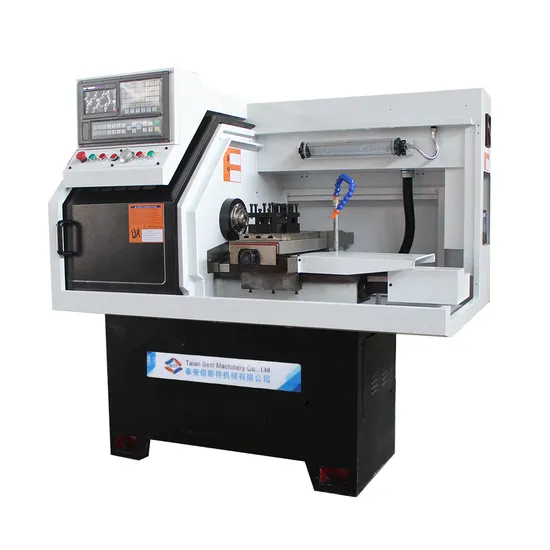

Small cnc lathe machine for auto parts processing CK0660 uses the design of mechanical and electrical integration,generous appearance beautiful,reasonable structure,easy operation. It can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.
Standard configuration :
1-With GSK928 Control System ;
2-With Pneumatic collet ;
3-With Gang type tool post ;
4-With Cooling device;
5-With Automatic lubrication system and Lighting system;
Optional configuration :
-Control system: Siemens 808D ,Fanuc 0i-TF, KND..
-Hydraulic chuck , Pneumatic chuck ;
-4 station electric tool post ;
-6 station electric tool post ;
-Manual tailstock;
-42 type oil bar feeder;
-Independent power head;
Product Parameters
| Items | Unit | CK0660 |
| Spindle bore | mm | Φ70 |
| Bar through diameter | mm | Φ60 |
| Max. swing over bed | mm | Φ250 |
| Max. swing over carriage | mm | φ130 |
| Max length of processing | mm | Chuck 120/Collet 200 |
| Max. Travel of X/Z axis | mm | 280 |
| Spindle nose | | A2-5 |
| Bed width | mm | 260 |
| Range of spindle speed | RPM | 50~2500 |
| X/Z Axis fast moving speed | mm/min | 6000/8000 |
| X/Z Axis positioning accuracy | mm | 0.010/0.015 |
| X/Z Axis repositioning accuracy | mm | 0.0075/0.015 |
| Power of the main drive motor | KW | 4 |
| Overall dimensions(L×W×H) | mm | 1600×1000×1600 |
| Net weight | KG | 850 |
| Gross weight | KG | 950 |
Detailed Photos
Company Profile
Why Choose Us
Packaging & Shipping
FAQ
>>
