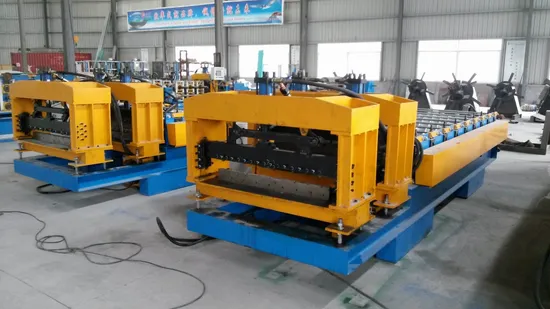

Steel Roofing Machine Price

Product Description

Focus on roll forming machine for more than 19 year
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:supply the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.

1.Roll Forming Machine (1) Material Thickness:0.3mm-0.8mm PPGI and GI (2) No.of Roller Stations:14 to 18 steps
(3) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(4) Material for Shaft:40Cr
2.Cut-Off Device
(1) Material for Cut-off Modular:Cr12mov after treatment (2) Hardness for Heat Treatment:HRC60-62°
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW
3.PLC Control Box Type:PLC Frequency Control System with touch screen
4.Main Accessories:
(1).Main Forming Machines;
(2).5 Tons Manual Uncoiler;
(3).Hydraulic System;
(4).PLC Computer Controlling System With Touching Screen;
(5).Hydraulic Forming Cutter;
(6).Tools;
(7).Operation Manual.

5.Main Technical Data:
Model Number	YX37-840
Size	8000*1500*1600mm
Weight	6500KGS
Motor Power	5.5KW
Hydraulic Power	3.7KW
Voltage	380V/50HZ/3PH
Forming Steps	12steps
Processing Speed	8-12m/min
Thickness	0.3mm~0.6mm
Feeding Material Width	1000mm;
Effective Width	840mm
Height of Roofing	38mm

Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
