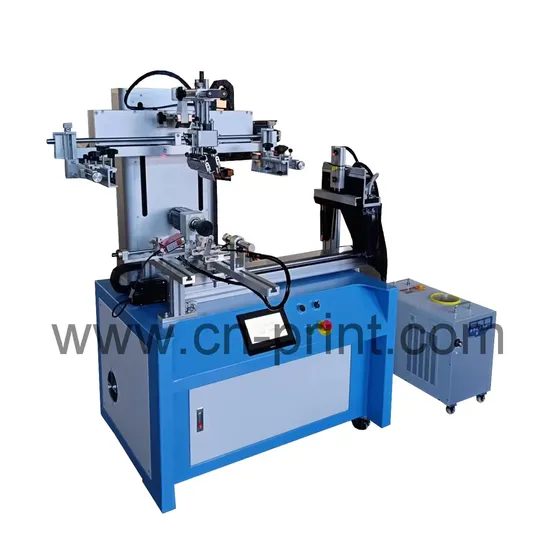

| Model number | LC-400ES-UV | Product appearance | Round |
| Max Printing diameter | Φ120mm | Max printing arc length | 370mm |
| Printing Speed | 1800 PC/H | Machine Weight | 420kg |
| Machine gross weight | 480kg | Air pressure | 0.5Mpa |
| Voltage power | 220V/50HZ | Application area | Container |
| Main Features 1.When the product is printed, it is moved to the LED lamp for drying and curing, which greatly reduces the damage to the screen frame. 2.Full touch screen man-machine dialogue control mode, simple operation and safe for workers 3.The signal is transmitted by German sensor and three Swiss ABB servo motors are controlled. It is suitable for multi-color overprinting of bottles without registration points for various special-shaped products. 4. This is a high precision and high efficiency surface screen printing machine, left and right, rotation, shuttle full servo control, up and down using three-phase frequency conversion motor control, printing balance vibration is small, high precision, stable operation, multi-color overprinting accurate; Adopting double column structure, sanling 5UPLC system, running smoothly at high speed. 5. The left and right movements of the printing head are driven by linear guide rails. Double guide column left and right mesh clamping arm, at the same time install plate distance adjustment device, printing accuracy: ± 0.03mm, running speed can reach 1800times per hour. 6.Emergency stop automatic rise alarm shutdown device, more humanized, higher safety factor. |
