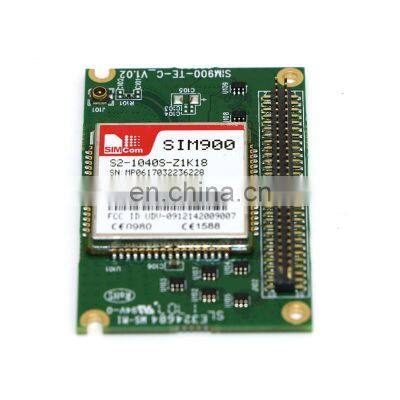

SIMCOM SIM900 GSM GPRS module sim900te-c datasheet

Product Description

Product Description
DescriptionGeneral Features•Quad-Band GSM 850/900/18001900MHz•GPRS multi-slot class 10•GPRS mobile station class B•Compliant to GSM phase 2/2+ -Class 4 (2 W @ 850/900 MHz) -Class 1 (1 W @ 1800/1900MHz)•Control via AT commands(GSM 07.07 ,07.05 and SIMCom enhanced AT Commands)•SIM application toolkit•Supply voltage range: -GPRS: 3.2 ~ 4.8 -V-GPS: 3.0 ~ 4.5V•Low power consumption•Dimensions: 50*33*6.3mm•Weight:•Operation temperature:-40°C to +85 °CSpecifications for SMS via GSM / GPRS•Point-to-point MO and MT•SMS cell broadcast•Text and PDU mode Specifications for audi o•Tricodec-Half rate (HR)-Full rate (FR)-Enhanced Full rate (EFR)•Hands-free operation•Echo cancellationSpecifications for data transfer•GPRS class 8/10: max. 85.6 kbps (downlink)•PBCCH support•Coding schemes CS 1, 2, 3, 4•CSD up to 14.4 kbps•USSD•Non transparent mode•PPP-stack•Integrated TCP/IP stackCompatibility•AT cellular command interfaceSensitivity2Tracking -162dBmNavigation -160dBmCold starts 148dBm•Time-To-First-Fix3Cold starts 35sWarm starts 24sHot starts 1sAccuracyAutomatic Position4 1.5m CEP Interfaces•60 pin DIP connector•Interface to external SIM 3V/ 1.8V•one analog audio interface•SPI interface•RTC backup•A serial interface and a debug interface for GSM/GPRS• A serial interface and a debug interface for GNSS•Two separate antenna connectors for GSM/GPRS&GPS1.Autonomous ST-AGPS mode2.Demonstrated in lab3.All SV @ –130 dBm 4.50% 24 hr static, -130dBmSpecification for GNSS•Support GPS/GLONASS/Galileo/QZSS•Support SBAS/ST-AGPS1•Support Jamming Removing•Integrated Low-noise amplifier•Receiver type32 tracking channel and 2 fast acquisition channel which are compatible with GPS, Galileo,QZSS and Glonass systems•Max update rate : 10HzWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC

---
