Co-Extrusion Online 3D Embossing PP PE PVC Wood Plastic Composite Extruder Machine for WPC Decking Tiles Waterproof Flooring

Product Description

Co-extrusion Online 3D embossing PP PE PVC wood plastic composite extruder machine for wpc decking tiles waterproof flooring
Raw material: Using Waste wood and Waste plastic WPC wood plastic machine for making WPC decking and profiles

PPlastic material	recyccled PP/PE plastic
Wood material	wood powder from rice husk/straw,wheat husk/straw,wood sawdust,wastage wood
Percentage of plastic	25-30%
Percentage of wood powder	50-70%
Final product	WPC decking, WPC wall cladding, WPC pergola profile,WPC post, WPC fence profile, and other WPC construction profiles
Production process	raw material--mixing--granulation--extrusion and molding--surface treatment

PE WPC Turnkry Project Machine Images

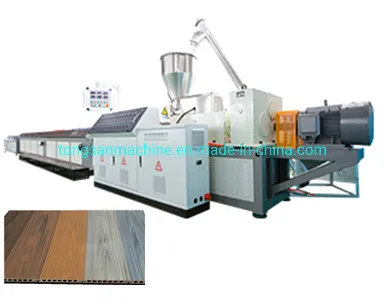

HGMSE series PP/PE WPC profile production line can continuously produce PP/PE WPC co-extrusion profile.
The WPC profile adopts two-step production process.The first step is using WPC granulating machine to make WPC pellets from recycled PP/PE material,wood powder and chemical additives.The max wood percentage can be 70%.The the WPC profile extrusion line will make the WPC pellets into WPC profiles by equip customized mold.We can equip on-line embossing machine to achieve 3D wooden pattern.The profile produced by this production line can be sanded and brushed by sanding machine and brushing machine.
1, WPC granulation machine After get ready wood powder and recycled PP/PE plastic, the first step is mixing them with chemicals, then use WPC granulation machine to make WPC granules
SHMS series granulating machine is used for making WPC pellets. The WPC pellets produced by WPC granulating machine can used for making WPC product using WPC machine.The granulating machine consists of parallel double-screw extruder,water cooling system, a granulator and air conveyor cooling system.The feeder and hopper are equipped with mixer to prevent the material blocked up.If customer do not have strict requirements about the appearance of pellets, the granulator can be removed.The pellets extrude by extruder directly, then go for crusher. Can improve the production capacity.

Model	L/D ratio	Max.capacity	Motor power	Suitable material	Max.rotating speed	Wood powder percentage
SHMS-65	40:1	200-220kg/h	75kw	Pe+wood powder	500r/min	≤75%
SHMS-75	40:1	300-350kg/h	90kw	Pe+wood powder	500r/min	≤75%
SHMS-90	40:1	500-600kg/h	132kw	Pe+wood powder	500r/min	≤75%

2, WPC profile extrusion line
Material: recycled 30% PP/PE+70% wood powder+chemical additives.
Product: WPC decking, WPC wall cladding, WPC fence, WPC pergola..
The WPC profile extrusion line can make WPC granules into WPC products by equipping required mold, we can equip co-extrusion system and online 3D embossing device for making WPC products in high quality with wooden grain, the line also equipped with online cutting device.

Model	HGMSE-65	HGMSE-80
Extruder model	SJMS65/132	SJMS 80/156
Motor power	37kw	75kw
Mac.Extrusion capacity	140-160kg/h	220-250kg/h
Co-extruder(Optional)	SJ35/28	SJ45/28

We have high quality Online embossing device.it can do amazing 3D embossing design
3,WPC product wood surface making machine
Embossing machine, sanding machine, brushing machine, online embossing machine. these machines is for making WPC products with better wooden feeling design.
3.1 WPC sanding machine.This machine is used for fixing the size of single extrusion WPC product and doing surface treatment
3.2 WPC brushing machine.This machine is used for brushing the WPC product. To do the different surface on WPC product by changing the brushing roller and sanding roller
3.3 WPC brushing and sanding machine.This machine is used for doing surface treatment of different WPC product. This machine has the function of sanding machine and brushing machine.

PE WPC Decking Installation Details and WPC Products Application
The PE WPC profile extrusion line is suitable for producing the hollow/solid PE WPC profiles. This profile has the advantage of fireproof, waterproof, moisture proof, moth proof, mildew proof and environment friendly. It is mainly used for extruding outdoor decorative WPC profiles, such as gardening landscapes, outdoor landscapes, pallets etc.
This extrusion line is for producing co-extrusion PP/PE WPC decking. The decking surface can be made into wood grain by co-extruder. Further more, the machine can be equipped with on-line embossing device the surface can be made into 3D wood grain. The WPC decking has a series of advantage including water-proof, insect prevention, ageing resistant, easy installation, environment friendly and good weathering resistance.
FAQ:
1. What's WPC?
WPC is short for Wood Plastic Composite. The combination of the raw materials are mostly 30% recycled plastic (HDPE) and 60% wood powder, plus 10% additives such as anti-UV agent, lubricant, light stabilizer and etc.
2. What's the process to make WPC decking?
(a) Mix raw materials according to certain formula, then make them into pellets.
(b)By extrusion machine and mold, shape the products in customized profile and size.
(c)Do surface treatment such as sanding or embossing, then cut the WPC decking by requested length before package.
3. What are the benefits to use composite decking?
(a) Composite decking is waterproof, fire retardant, UV resistant, anti-slip, maintenance free and durable.
(b) Its profiles, lengths, colors, surface treatments are adjustable.
(c) It's easy to install and cost efficient.
(d) Since the raw materials are recycled, the product itself is eco-friendly.
PP PE WPC Product features: Main features of our Wood Plastic Composite:
1. With wood scent, natural feel
2.Durable, anti-impact, wear proof, with high density
3. High capacity of UV-resistance, and color stability
4. High resistant to moisture and termites
5. Easy to be installed and low labor cost
6. Required no painting, no glue, low maintenance
7. 100% recycled, environmental friendly, saving forest resources
8. Barefoot friendly, anti-slip, no cracking
9. Weather resistant, suitable from-30°C to 60°C

Characteristics	WPC	Wood
Moisture Resistance	Waterproof	Water absorptive
Rot Resistance	Antisepsis	Rot except special treating
Split Resistance	No Cracked	Cracked by weathering effect
Distortion Resistance	Almost no Contraction/expansion	Distorting effected by chang of moisture and temperature
UV Resistance	High Grade UV Resistance	Easily effected by UV
Fading Resistance	Almost no	Easy to fade
Outdoor adaptability	Great	Only few of treatedowood adaptive
No need painting	No need	Need paint periodically
Durable/longevity	> 10-15 years	< 3 years
Various Configuration	Extruded via various mould	simplex
Environment Effect	Recyclable 100%	Consume woods

---
