Product Details
Product Description
Product Description

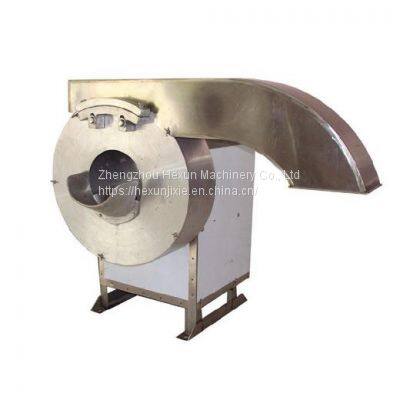

Fries machine is a kind of equipment that can make fries, which is an ideal processing equipment for vegetable processing industry to make fresh-keeping vegetables and dehydrated vegetables.
Product use:
This machine is suitable for cutting or slicing potatoes and hard vegetables, and is an ideal machine for processing fries in the fast food industry.
Product Features:
The machine adopts the guide chute on the rotary dial tray to feed the material; Small D with oblique distribution, arc-shaped diagonal blade large D for cutting. It has the characteristics of good cutting quality, high efficiency of cutting vegetables, convenient operation and low energy consumption.
The parts in contact with vegetables are made of aluminum alloy and stainless steel materials, which meet the requirements of food processing machinery hygiene standards.
Structural features:
It is mainly composed of frame, shell, dial tray, cutting D, transmission part, discharge cover, etc.
How it works:
When working, the potato material is put into the hopper, and the material is guided to rotate along the shell wall by the pouring chute on the rotary dialing tray, and the cut D installed on the shell wall cuts the vegetables into strips, and the cut fries come out of the discharge hood.
Technical parameters:
a) Production capacity: 1000kg/h (calculated according to 10mm)
b) Cutting size: 5mm.8mm.10mm. (slightly curved). (Each machine is configured according to one specification, if the user needs to purchase other specifications of small D, gasket, dial tray)
c) Feeding speed: 178r/min
d) Motor power: 1.1kw-4 or 0.75kw-4
e) Rated voltage: 220V~ or 380V~ 3~
>>
