IP68 Double Ended Shear Beam Load Cell Weighing Sensor Used for Warehouse Scales OIML

US$85.00-125.00 20 Pieces (MOQ)

Basic Info.

Model NO.

DESB5

Out-Wire

4-Wire or 6-Wire

Output Signal Type

Analog Type

Feature

Stable

Production Process

Normal Wirewound

Material

Alloy Steel

IP Rating

IP68

Certification

ISO

Customized

Maximum Capacity(Emax)

25,40,50,60,75,100,125klb

Sensitivity(Cn)

3.0±0.003mv/V

Zero Balance

0±0.03mv/V

Temp.Effect on Zero Balance

±0.02% of Cn/10K

Temp.Effect on Sensitivity

±0.02% of Cn/10K

Hysteresis Error

±0.0500/0.0270 % of Cn

Non-Linearity

±0.0500 /0.0250% of Cn

Creep Over 30 Min

±0.030 /0.020% of Cn

Input Resistance

750±10Ω

Output Resistance

703±3.5Ω

Nominal Range of Excitation Voltage

5~15V

Insulation Resistance at 50VDC

≥5000mΩ

Service Temperature Range

-30ºC ~ +70ºC

Safe Load Limit

120% of Emax

Breaking Load

200% of Emax

Transport Package

Foam and Carton

Specification

Please Contact

Trademark

MARQUES

Origin

Ningbo

HS Code

9031809090

Production Capacity

20000PCS/Year

Product Description

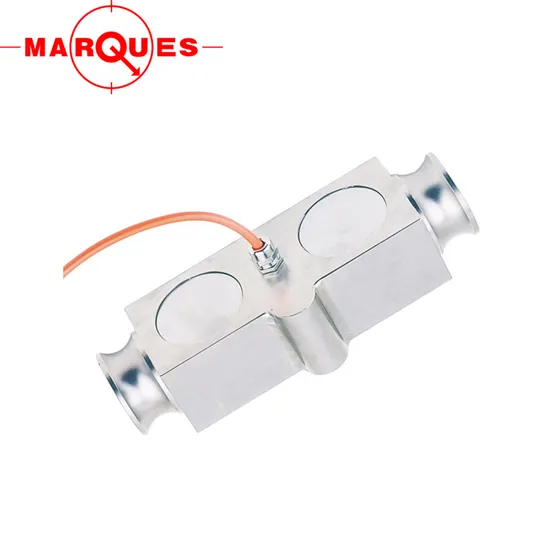

Load cell - Double ended shear beam
1. Accuracy Class:0.05/0.03
2. Laser welding, IP68
3. Material: Alloy Steel
4. Used in truck scale, warehouse scale
Product Parameters
Application
============================================================ Used in truck scale, warehouse scale Protocols
============================================================ We are homologated in the main current weighing systems. Also able to be customized according to your system. Company Profile

Factories&Equipments
Our Exhibitions
Our Advantages
1. Fast replied until 12 hours.
2. OEM/ODM are welcome.
3. We provide samples.
4. All products have been tested by High-Quality Area.
5. All products have one year of warranty.
6. We have our own R&D Professional team.
7. We have our own IT area that develops our own system making it easy and fast for customizations.
8. All products have high quality and European standards.
9. All process is made by us making it possible to give a competitive price.
10. Team fully prepared to give you full support.
