CE Certified Wood Log Multi Rip Saw Safe & Reliable Operation Guaranteed

Product Description

Product Description

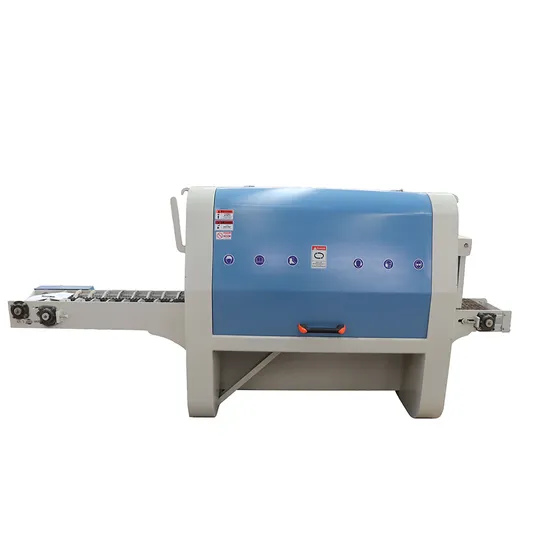

Log Cutting Multi Rip Saw

Technical Parameter	Y-200	Y-260	Y-330
Sawing the log diameter	60-200mm	100-260mm	150-330mm
Saw Blade Diameter	305mm	380mm	455mm
Main Shaft Diameter	50mm	60mm	70mm
Main Motor	22kw*2	30kw*1,37kw*1	37kw*2
Machine Size	3050*1400*1500mm	3480*1550*1600mm	3640*1600*1650mm
Weight	1720kgs	2300kgs	2550kgs

Technical Parameter	Y-360	Y-400	Y-480
Sawing the log diameter	170-360mm	180-400mm	250-480mm
Saw Blade Diameter	500mm	550mm	650mm
Main Shaft Diameter	80mm	80mm	100mm
Main Motor	55kw*2	55kw*2	75kw*2
Machine Size	3680*1750*1800mm	4550*1950*1850mm	4900*2750*1950mm
Weight	2680kgs	3500kgs	4100kgs

Our Advantages

1, heavy design, solid and stable performance
2, the upper and lower axis structure, multi-piece sawing, continuous discharge,
compared with the efficiency of band saw 5-6 times
3, infrared alignment device, reduce wood waste
4, the company shaft water
patent, improve the service life of the saw blade
5, the whole process of multi-power feeding, reduce the labor intensity of
workers
6, double bulletproof device design safety science
7, the press wheel device adopts the support point type power press
wheel, smooth and strong feeding, not easy to stick material
8. Processing efficiency: 50-80 m3 / day
Detailed Photos
Control Panel
The electric button controls the operation of the machine, the operation is simple and convenient.

Double Blade Shaft

Double tool shaft design, cutting speed, high efficiency.
V-shaped conveyor chain
The V-shaped transmission chain increases the friction between the chain and the log, and prevents the log from turning over while ensuring fast transmission of the log.
Spacer Pad
The spacer is installed between the circular saw blades, the thickness of the spacer determines the processing width of the out put plate.

Carbide Tip Circular Saw Blade
Circular saw blade is a circular saw blade with a carbide tip, which can be cut both softwood and hardwood.
Shaft Water Cooling System
The water cooling system in the shaft cools the working circular saw blades and washes the sawdust off the blades.



Related products
Double Spindle Panel Cutting Multiple Blade Rip Saw
Plate multi-piece saw is a kind of machine for plate production and processing, the machine has the characteristics of high production efficiency, high stability, simple operation and maintenance, high finish of the material without pressing planing, etc., which plays a dominant role in the processing equipment. This equipment is specially designed for wooden house and anticorrosive wood processing, suitable for large thickness of the wood cutting, suitable for large-scale production. The feeding table of this machine is customized according to customer needs.

Model	SH80-300	SH120-250	SH160-250
Max. Sawing width	300mm	250mm	250mm
Max. sawing thickness	80mm	120mm	160mm
Min Sawing length	600mm	500mm	500mm
Motor Power	15kw*2	22kw*2	30kw*2
Saw Blade Diameter	180mm	230mm	255mm
Machine Weight	1200kg	1800kg	2000kg

Model	SH120-300	SH160-300	SH160-400
Max. Sawing width	300mm	300mm	400mm
Max. sawing thickness	120mm	160mm	160mm
Min Sawing length	600mm	600mm	600mm
Motor Power	22kw*2	30kw*2	37kw*2
Saw Blade Diameter	230mm	280mm	280mm
Machine Weight	2500kg	2800kg	3000kg

Variable Frequency Speed Adjustable Feeding Spindle Center Water Cooling Blade
