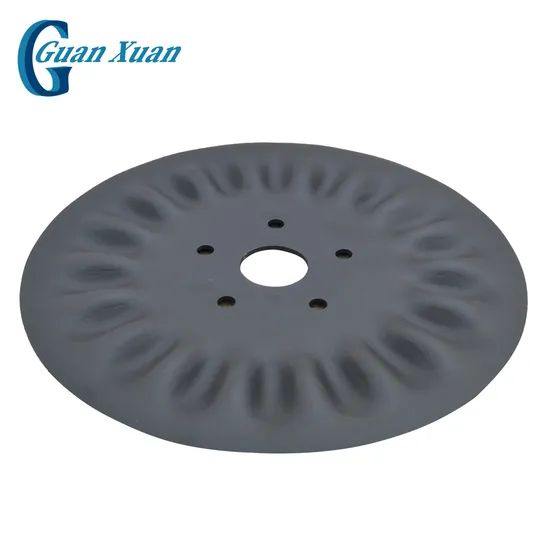

Circular Harrow Turbo Saw Cutting Diamond Disc Blade

Product Description

Product Description
Disc blade is widely used in Disc plough, Disc harrow on the most important wear parts. Our disc blades are exported to the United States, Canada, Russia, South Africa, Southeast Asia and other countries every year. We export over one million pieces annually. Our experience of producting Dics Blade is over 20 years, helping customers in various regions to open up more markets.
Our product is made of Anshan steel and Lingyuan steel, the best steel in China, so we guarantee that the quality of our disk blades is better and the service life is longer, up to 2-3 years.

Material:	65Mn,Boron steel
Hardness:	HRC38-45, HRC43-48
Thickness:	3.0-12.5mm
Size/dimension:	12"-44"(300mm-1120mm)
Edge of Disc Blade:	Round or Notched.
Shape:	Flat,Concave or Wavy
MOQ:	100 pcs
Production Capacity:	7 Million pcs annually
Surface treatment:	Painting
Colors:	Blue or black ( matt or bright), Made to your order
Hole Type:	Square, Round, Hexagon, Clover Leaf, Optional
Hole Size:	27x27mm, 42x42mm, optional
Working Depth:	200mm, 300mm
Working Width:	3.4M ~ 6.2M
Packing:	Non-fumigation wooden case, metal case according policy of different regions
Feature /Characteristic:	Highest wear life due to special edge making process

Detailed Photos
Product Parameters

Diameter		thickness	Concaved		Notched		Flat & Waved
Inch	mm	mm	Weight		Weight		Weight
			Kg	LBS	Kg	LBS	Kg	LBS
12	305	3.5	/	/	/	/	1.9	4.2
14	356	3.5	/	/	/	/	2.6	5.7
16	406	3.5	3.7	8.1	3.3	7.3	3.4	7.5
18	460	3.5	4.7	10.4	4.3	9.5	4.5	9.9
18	460	4	5.4	11.9	4.8	10.6	5.1	11.2
20	508	4	6.8	15.0	5.9	13.0	6.3	13.9
22	560	4	8.4	18.5	7.1	15.6	7.7	17.0
22	560	5	10.3	22.7	8.8	19.4	9.5	20.9
24	610	4	9.7	21.4	8.2	18.1	9.1	20.0
24	610	5	12.0	26.4	10.4	22.9	11.3	24.9
26	660	5	14.2	31.3	12.1	26.6	/	/
26	660	6	17.0	37.4	14.8	32.6	/	/
28	710	6	20.0	44.1	17.6	38.8	/	/
28	710	7	23.5	51.8	20.7	45.6	/	/
28	710	8	26.8	59.0	23.6	52.0	/	/
30	760	7	26.8	59.0	23.6	52.0	/	/
30	760	8	30.6	64.4	27.6	60.8	/	/
30	760	10	38.0	83.7	34,2	75.3	/	/
32	810	10	43.5	95.8	38.7	85.2	/	/
32	810	12	52.0	114.5	46.8	103	/	/
36	910	12	66.7	147	60.0	132	/	/
38	960	12	74.0	163	66.8	147	/	/
40	1010	12	83.0	183	76.5	168	/	/
44	1120	12	102.0	225	96.0	211	/	/

Product application direction:
Manufacture Process
We have a world-class production line and strictly control quality from material selection to packaging and transportation.
Company Profile
Guanxuan is a professional agricultural machinery manufacturer that integrates research and development, production, sales, and service of agricultural machinery. Guanxuan has advanced machining, welding, forging, forming, and heat treatment processing technologies. Guanxuan Company is located in Qingdao, Shandong Province, covering an area of 150 acres, with standard factory buildings occupying over 48000 square meters and more than 220 employees,our annual export value exceeds 20 million US dollars.
Our main products include Disc harrow, Disc plough, Cultivator, Share plow, Farm trailer, Grass mower, Seeder, Harvester, Disc blade, Break shovel and other agro Parts. Especially in heat treatment of the blade, we have accumulated rich experience, the production of blade with excellent technology and reliable quality has won the customer's widely recognized.
With the actual needs of the market and users, Guanxuan continuously strives to promote the integration of agricultural machinery and agricultural art. The company is based in the domestic Chinese market and exports to countries and regions such as the United States, Russia, Australia, Mexico, Thailand, Pakistan, Indonesia, Morocco, Nigeria, South Africa, Sudan, Taiwan, etc.
Certifications

Packaging & Shipping
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.
After Service: 12 Months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them By air express if you need it urgently.
FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T
Warranty: 1 year
3.Q:Are you Professional?
A: Yes, i am a professional sales director worked in Hongri factory for 5 years, i will handle and arrange everything after you placing your order, Don't worry, Hongri with you!
4.Q:Spare parts available?
A:Yes, all the spare parts were made by Guanxuan, you can buy from us directly!
5.Q: Are you the factory?
A:Yes, Guanxuan is the factory specialized in various of Farm equipment, we start to produce farm implements since 2003!
6.Q:I want to buy the other equipment, can you help?
A:I will suggest the manufacturer to you and help you analysis this supplier before you place your order.
I can also help to purchase the equipment you like.
7. Q: Why choose Guanxuan for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 20years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your rang
e to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only 7 days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. Obtained SGS and CE certificates.
11.Lower repair rate and bad review rate.
Please feel free to contact me if you have any questions.
Thanks. Have a nice day!

---
