Run Steadily Folding Facial Tissue Paper Making Machine

Product Description

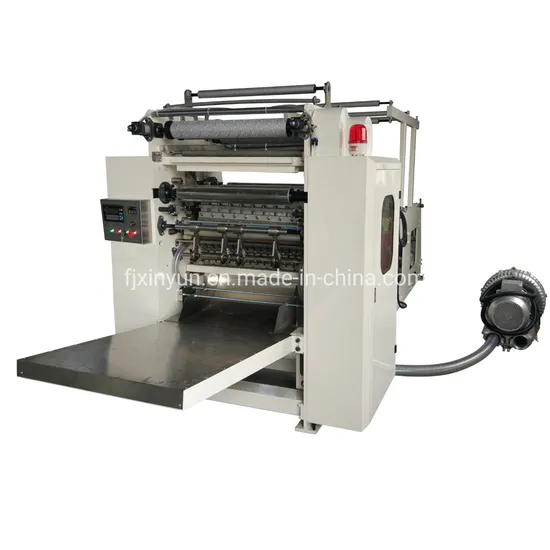

Product Description XY-GU-20A Run steadily folding facial tissue paper making machine Outline The new removable facial tissue machine is cutting the base paper cut by the knife roll, interactive folded into a chain of rectangular or square facial tissue. This machine adopts
inverter motor independent drive, automatic tension adjustment, automatic sub-count
function, with high speed, neat folding, easy operation and so on.
Function Charateristics This machine is working for facial tissue paper without warpping and packing
Compoent of machine consist of Automatic;Embossing ;Folding ;Cutting;Couting function
1. Automatic counting points a whole row output
2. Helical blade shear, vacuum adsorption folding
3. Step-less speed regulation unwind and can adapt to rewind high-low tension paper material
4. Adopt PLC computer programmable controller, pneumatic paper and easy to operate;
5. Frequency conversion control, saves energy.
6. The product width is adjustable, to meet different market requirement.
7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand.
(The embossing pattern is chosen by the customers ).
8. It can make "V"type single layer towel and two layers glue lamination .(Optional)
Technical Parameter

Basic information of machine
Model	XY-GU-20A
Main Power (KW)	7 - 15KW (380V 50Hz 3 Phase)
Weight (T)	3 - 7
Overall size (mm)	L(5800)xW(2400)xH(2000)
Embossing unit	Steel to steel
Slitting unit	Pneumatic slittingPneumatic slitting
Pneumatic system	3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system	Timing belt
Design Product Capacity	800-1,200 sheets/line/minute
Speed(sheet/minute)	Min:2 lines/1,600 Max:8 lines/6,400
More detial informations
Vacuum suction unit	22KW Fan
Jumbo roll paper frequency motor	3.0KW(2sets)
Interfold Style	"V"type
Folded size of finished products	100*200±2mm
Unfold size of finished products	200*200±2mm
Jumbo Roll Size	1400mm(W) 1200mm(Ø)
Jumbo Roll Material limite	Paper Basic Weight: 12~18 gsm/1 ply
	Paper Material:100% pure paper
	Jumbo Roll Paper Core: 3 inches

The max width of jumbo roll paper	2Lines	3 Lines	4 Lines	5Lines	6Lines	7Lines	8lines
	420mm	680mm	840mm	1050mm	1260mm	1470mm	1680mm
Electricity power for	3.0KW	3.0KW	4.0KW	5.5KW	5.5KW	7.5KW	7.5KW
Vacuum blower	7.5KW	11KW	15KW	15KW	22KW	22KW	25KW
Production speed	60-100 m/min

Detailed Images
1. Jumbo Roll stander with 2 units
2. Paper Tension Control system
3. Embossing roll pattern design customize
4. Edge Embossing roll assistance
5. Digital Counting sensors readout
6. Product Output panel Related Products Automatic facial tissue paper poduction line
XY-GU-A-B
XY-GU -281 Full Automatic Facial Tissue Cutting Machine
XY-BT-298 High speed automatic facial tissue paper packing machine
XY- GU -26 Semi-automatic soft tissue middle bag packing machine Other machine
XY-GU-388 High Speed Full Automatic Facial Tissue Box Packing Machine XY-TQ-B High speed automatic rewinding toilet paper making machine XY-OQ-7000A New condition Full-automatic folding napkin paper making machine
FAQ 1. What can I get during I buy the paper machine from your corporation?
First of all, we will provide best serves sincerely to our client, then we'll offer a good quality paper machine at reasonable prices to you
second The prices are clear and quite good .there is no haggling as well. So you don't have to worried about you would get ripped off or anything.
2. How long does it take freight transport to the final destination from the city?
Regularly!The freight transport would take time about 1-60 days.
3. Is there have any engineers to instruct me on how to operate the machine?
Of cause! I'll send a professional engineer to instruct your workers on how to operate and maintain the machine in your local factory!
4. What are your terms of payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. What about us
Fujian Xinyun Machinery Development Co.,Ltd
We are a Corporation What Good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2)Kitchen Towel Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.e etc.

---
