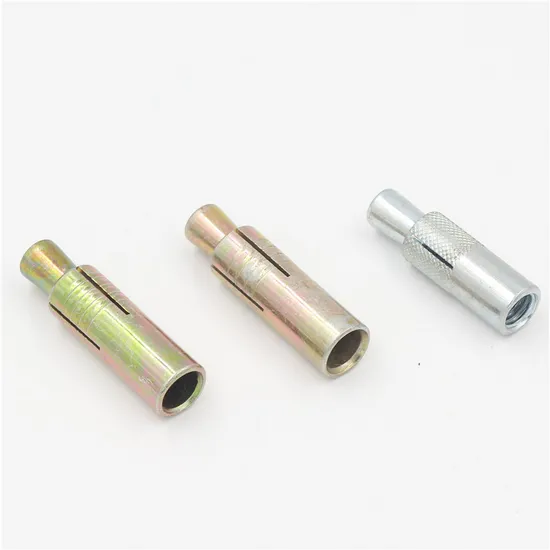

Strong Anchor 3/8*12, 3/8*14 Cut Anchor

Product Description

Product Description

Product Name	Cut Anchor M6-M16
Material	Carbon steel
Size	M6-M16
Surface	Bright
Packaging Details	Cartons + Plywood cases Also can be packed as clients' requirements.
Delivery	Within 15 days
OEM/ODM	Available
Sample	Available, 3-5 days after receiving payment

Cut anchors are an improved expansion anchor with internal thread and a plug, and is the most popular anchor.
Anchor can be installed with hex bolt, stud and hookbolt, etc. After installation, concrete will not be effected in appearance as a rise on the surface.
The test values listed beneath were obtained using 200-250 kgs/cm2concrete(no aggregate). A safe working load should not exceed 25% of stated values.

Cut Anchors Size (A)	Anchor DIA.(B)	Anchor Length (C)	Thread Length (D)	Bolt Thread Fit Length	Drill DIA (mm)	Pull out Load (Kgs)
M6 W1/4	11.0 (10.5)	30	9	8	11.1	980
M8 W5/16	12.0	35	12	10	12.1	1500
M10 W3/8	14.0	40	14	12	14.1	2100
M12 W1/2	17.5	52	20	16	17.6	3200
M16 W5/8	21.4	63	24	20	21.6	4300
M20 W3/4	25.4	83	31	25	25.6	5600
M22 W7/8	28.5	93	36	30	29.0	7000

Metric / inch size available
Detailed Photos
FAQ Q: Are you trading company or manufacturer?
A: We are trading company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
Q: Why choose us?
A: 1) Reply you in 24 working hours.
2) Experienced staffs would like to answer all your questions in time.
3) Customized design is available. ODM&OEM are welcomed.
4) Special discount and protection of sales are provided to our consumers.
5) We can provide free sample, consumer should pay the freight first, and the expensive sample cost will be added in the next order.
6) As an honest exported seller, we always use professional factory, quality quotation, good service, skilled technicians to ensure our products to be finished in high quality and stable feature.

---
