Standing Seam Former Roofing Sheet Selflock Roof Panel Machine with Manual Decoiler

Product Description

Product Description

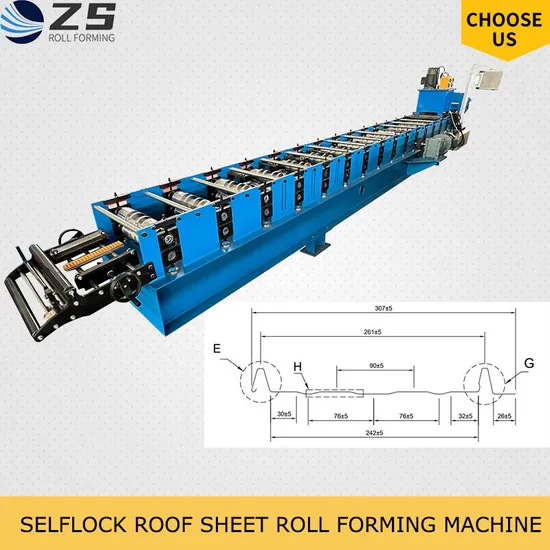

Self Lock Metal Join Hidden Roof Sheet Roll Forming MachineSelf Lock Metal Join Hidden Roof Sheet Roll Forming MachineThe Self Lock Metal Join Hidden Roof Sheet Roll Forming Machine is one of the most popular types of roll forming machines. It crafts various shapes of steel roof sheets, ideal for buildings, factories, supermarkets, and more. This versatile machine accommodates coil widths of 500mm and thicknesses ranging from 0.3mm to 0.8mm. Constructed with a robust 16mm thick wall board type, it ensures a strong machine frame. Operate effortlessly with a max speed of 15m/min through a user-friendly PLC touch screen system.
Profiles:
We can customize the machine to follow your specific design and requirements:

Hydraulic Curve Machine:

Roll Forming Machine Components:

No.	Name	Qty
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set
7	Pre-sliding Cutter	1 Set

Working Flow:
Uncoiler ----- Molding Core ----- Hydraulic System ----- Automatic Control System----- Automatic Shearing Mechanism ----- Products Receiving Tables
Detailed Photos
Feeder System:
Discover the latest innovation in feeder systems, designed for seamless integration.
Enjoy stable operation with zero coil sway.
Effortless adjustments for optimal performance.
Working width: Within 600mm
Main Roll Forming System:
Driving Type: Chain (common), Gear, or Gearbox;
Forming Model: Choose between Integral or Split Forming;
Machine Structure: Options include Medium-plate Type (common), Arch Type, or Guide-pillar Type;
Roller: 45# high-quality material for durability.
Shaft: 45# steel, 70mm diameter for robustness.
Motor Power: Available in 4.0kW, 5.5kW, or customized to meet design requirements.
Main Frame: Constructed with 350# or 400# H-beam steel for extra strength.
Roller details:
Rollers processed using CNC technology ensure high precision and impeccable product formation.
Hydraulic Cutting System:
Working Model: Choose between a Hydraulic Cutter (common) or Electric Cutter;
Cutter Blade Material: Made of robust Cr12 material.
Hydraulic Oil Pump System:
Equipped with a fan cooling system for optimal performance.
Power: 4kW
High-efficiency gear pump.
Automatic Seaming Machine:
Operates efficiently using electrical power.
PLC Control System
Automates control of quantity and cutting length with precision.
Input production data (batch, pcs, length, etc.) directly on the touch screen to automate the process.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand) Or Delta(Taiwan brand)
Inverter	Siemens (German brand) Or Delta(Taiwan brand)
7-Inch Color Touch Screen	Siemens (German brand) Or Delta(Taiwan brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens (German brand) Or Delta(Taiwan brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service:
1. Warranty:18months from the date the client receives the machine.
Within these 24 months, replacement parts will be couriered to the client free of charge.
2. We provide technical support for the full lifespan of our machines.
3. Technicians can be dispatched to install and train workers at the client's factory for an additional cost.
Terms Of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
