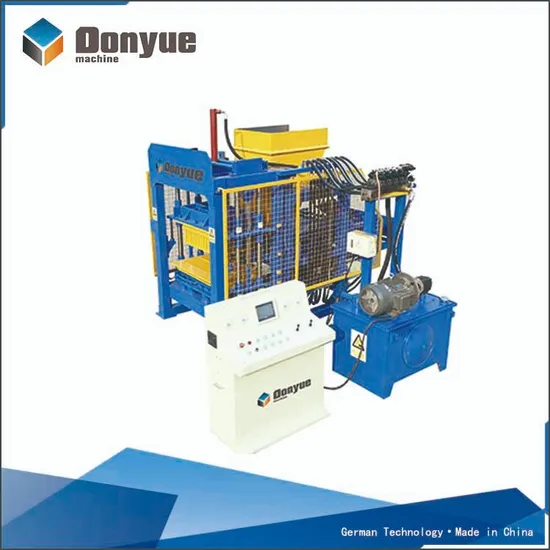

Qt Series Automatic Hollow Concrete Block Making Machine for Sale Low Price

Product Description

Product Description
1)The main features
1. The QT4-15B automatic paving block making machine in India is equipped with the touch-screen computer. The Japanese Mitsubishi PLC control system allows the full automation and intellectualization of the production process, including blending, material feeding, and compression molding. Each plate can make four air bricks, or 28 to 30 pieces of standard bricks.
2. Automatic paving block making machine in India is made of super strong structural steel via the special welding technique and welding materials. This hydraulic block machine applies the imported motors, sealing elements, and hydraulic components. Therefore, it is durable and shock proof. That is to say, our machine features stable and reliable performance.
3. In addition to the overlong sliding sleeve, four guide pillars are also used to make the pressure head and mould move accurately. The uplink synchronous device is utilized.
4. Our automatic paving block making machine in India applies the large-scale hydraulic machinery used oil jack to press from up and down. Hence, it can make the heavy bricks with the maximum intensity up to 20Mpa. Those finished products enjoy the advantages of good compactness, accurate size.
5. Block making machinehas two types of stacker cranes for you to choose. The block machine is multi-fuctional, since it can make the blocks of any materials. It can make numerous different blocks when equipped with different molds.
2) Each part introduction
Batching Plant: : This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Screw Conveyer (Optional fitment): Loading bins of the This is instrumental for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
Conveyer Belt: When the Batching plant's weighing bin trips according to the PLC control, the material comes to this conveyer belt. The material is then carried to the Mixture Machine.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement. Product Parameters

Mainframe Size	2440x2000x2600mm	Power	27KW
Molding Area	400x800mm	Exciting Force	40KN
Molding Cycle	15-20S	Blender Model	JS500
Supporting Plate Size	1010x550x20/25mm	Water Consumption	5T/day
Weight	7.6T	Project Area	20m*m

Theoretical Yield

Size (L*W*H) (mm)	Pcs/mould	Pcs/h	Pcs/8h
400x100x200	8	1440-1680	11520-13440
400x150x200	6	1080-1260	8640-10080
400x200x200	4	720-840	5760-6720
400x250x200	3	540-630	4320-5040
230x110x70	24	4320-5040	34560-40320
Paver:200x100x60	16	2880	23040
Paver:200x163x60	8	1440	11520

Detailed Photos
Finished Product
our clients
Packaging & Shipping
Company Profile
Our service
Pre-Sales Service * Inquiry and consulting support.
* In-process Product 100% Check* Machine testing support. * View our Factory.
* Customized moulds and colour
After-Sales Service * One year warranty * Free supply of spare parts and tools for one year use.
* Free supply of spare parts and tools for one year use.* Engineers available to service machinery overseas.

---
