Product Description
Product Description

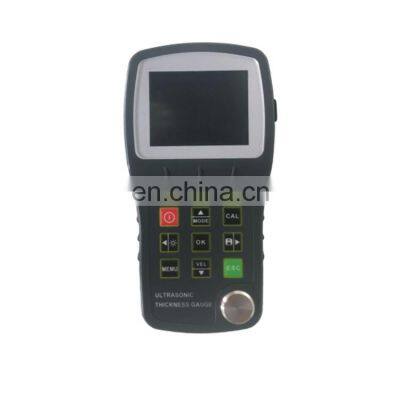

Product DescriptionThis series of Ultrasonic Thickness Gauges intelligently use pulse-echo and echo-echo detection technology. The advanced digital signal processing chip greatly improves the detection accuracy and greatly improves the yield in the production process. The thickness gauge uses a high-resolution true-color LCD screen, and a highly “human-machine” operating system will provide users an extraordinary experience. The thickness gauge is suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, fiberglass, and any other good conductor of ultrasonic waves. It can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields. SpecificationU100U150Working principleUltrasound(pulse-echo)Ultrasound (pulse-echo, echo-echo)Scope of test0.75-300mm0.75-300mm,penetration coating 2-150mmResolution0.1mm(＞100mm)/0.1mm(＜100mm)0.1mm(＞100mm)/0.1mm(＜100mm)Indication accuracy±(0.5%H+0.01)mm±(0.5%H+0.01)mmUnitmm/inchmm/inchLanguageChinese-EnglishChinese-EnglishScan mode25 times/second25 times/secondFrenquency bandwidth0.5-15MHz0.5-15MHzSpeed of sound1000~9999m/s1000~9999m/sOptional probeHigh tempetrature/thin wall coarse grain/ small diameterPenetration/ High tempetrature/thin wall coarse grain/ small diameter2.4 inch HD color screenHigh contrast 320x240 true color LCD screenHigh contrast 320x240 true color LCD screenSound path correctionAutomaticAutomaticProbe connection status indicationHaveHaveStorageTF card machine storge, can be exported to saveTF card machine storge, can be exported to saveCommunicationUSB interface communicates with host computerUSB interface communicates with host computerDimensions145x75x27mm145x75x27mmThe standard configuration1 host/1 probe/2 batteries/1 coupling agent/1 set of document/1 box1 host/1 probe/2 batteries/1 coupling agent/1 set of document/1 box1.High-precision thickness measurement: With zero-point calibration and two-point calibration functions, system errors can be automatically corrected; the speed of sound can be reversed based on known thicknesses to improve measurement accuracy.2.Scan mode: real-time display of the maximum and minimum values of the measured material.3.Communication and storage: USB interface can communicate with upper computer to realize online measurement of thickness measurement data, TF card storage.4.Thickness measurement of through-coating: The powerful thickness measurement function of through-coating which could avoid the tedious preparation work of hard grinding. And it only needs treat a slight coating surface for testing thickness measurement easily.5.Accurate measurement value: 0.1 /0.01mm resolution. High-precision measurement circuit guarantees 0.1/0.01mm or 0.01/0.001inch resolution in the entire measurement range.6.Display interface: 2.4-inch (320 * 240) true color LCD screen as the display interface, the backlight brightness is adjustable, and the screen is automatically turned off.Company ProfileCANGZHOU LOVELY GROUP CO., LTD. is located in Cangzhou City, Hebei Province, China. A leading manufacturer of Scaffolding & Formworks accessories, Ring-lock Shoring System, Testing Machine for construction projects, industrial engineering, roads and bridges etc. Cangzhou Lovely Group Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!Factory WorkshopHot SalesCertificationsCustomer PhotosPacking and ShippingFAQ Q1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester. Q2:Where is the loading port?A:Qingdao port or tianjin port. Q3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred. Q4:What certificates do you have?A:We have ISO 9001. Q5:Do you have an OEM service?A:Yes.We can provide OEM and ODM services as your requirements. Q6:How long is the production cycle after ordering?A:General it is about 7-20 days. Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
>>
