Product Description
Product Description

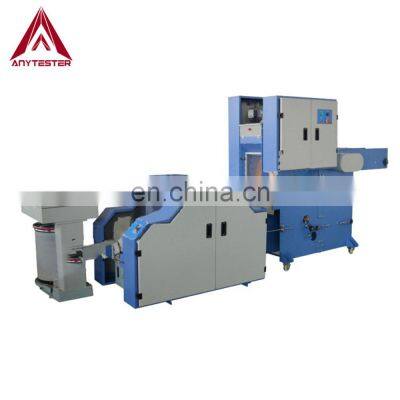

Product DescriptionAT202 Laboratory Carding Machine is part of the mini spinning system. It’s mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between deferentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.SpecificationModelAT202Feed in width400mmWorking width360mmMax. fiber lengthabout 100mmOutputSliver (web is optional)Sliver countMax. 7g/m for cotton, 10g/m for woolCylinder diameterΦ450mmDoffer diameterΦ220mmLicker-in diameterΦ165mmWorking roll diameterΦ110mmWipe roll diameterΦ90mmCylinder clothingAC3510*2110Doffer clothingAD4335*2110Working roll clothingBW204Wipe roll clothingBT-203Licker-in clothing1.09*4.5TCarding motor1.5kw, speed adjustable (Frequency converter control)Villus bucket power1.5KW (optional)Output capacity5~10kg/hMaine machine powerAC220V/380V, 50/60Hz, 2.2KWDimension1350mm*950mm*900mm (main machine)900mm*900mm*1200mm (villus bucket)2300mm*115mm*110mm(package)Net Weight550kg (including the hopper)Gross weight650Kg (including the hopper)Details & Features★ Imported frequency converter control, high efficiency.★ Mini type machine, save researching cost and easy to operate and maintain.★ Can be used for wool fiber or chemical fibers.★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web★ It can produce web or sliver according to customer’s selection.★ It is driven by a 2kw motor, equipped with frequency converter to adjust the running speed.★ With full-closed protective cover.★ Two rollers feeding.★ The output can be net or sliver, it’s select-ableOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1400*900*1600mmWeight200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
