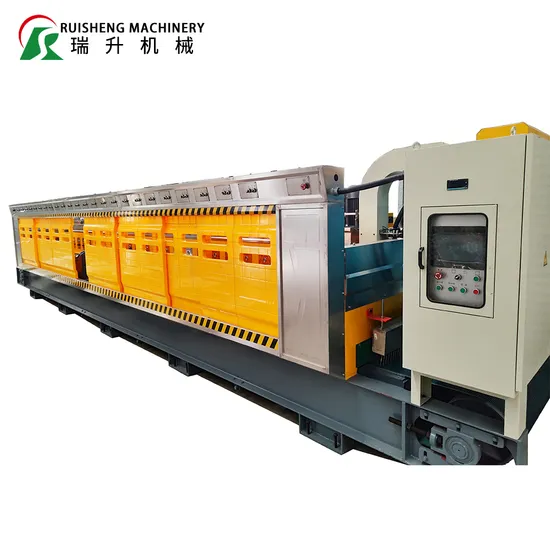

Efficient Automatic Granite and Marble Slabs Polishing Line Machine

Product Description

Product Description

Granite Lath surface polishing special, using resin grinding plate special elastic grinding head, polishing more comprehensive, higher efficiency, lower abrasive wear; Using the most advanced and high-quality construction, rational structure, high stability and efficiency, and energy saving operation;
Using PIC System and liquid crystal display screen menu, offering intelligent control;
Easy to operate, the stroke pressure when main spindle lifts and falls, the beam travel, speed and the belt moving speed can be adjusted
according to the stone materials and the requiring finishing gloss;
Auto-dodging function and shape-memory function, equipped with an advice to prevent the grinding head from mistakenly hitting the belt,
higher automation operation and lower labor the strength;
Using central automatic lubrication system, so that all moving parts and bearings can get a good lubricating effect, and longer life;
The power movement of polishing heads uses the narrow V bell with teeth set, to improved slabs flatness, reduced movement consumption and enhances the longer service life.

Product name	Unit	ZDMJ-16C	ZDMJ-20C	ZDMJ-25C
Useful working width	mm	300-1200	300-1200	300-1200
Usetul working thickness	mm	10-60	10-60	10-60
Belt advanced speed	3	0.8-2.5	0.8-2.5	0.8-2.5
(Number of grinding head(optional)	pcs	16	20	25
/Power of polishing head	Kw	7.5	7.5	7.5
Gross power	Kw	125	155	201.75
Water consumption	me/n	15	18	27
(Overall dimensions(LxWxH)	m	7.8X2.3X2.5	9.2X2.3X2.5	12.8X2.3X2.5

---
