Headstone Engraving Equipment Stone Carving CNC Machine

Product Description

Product Description

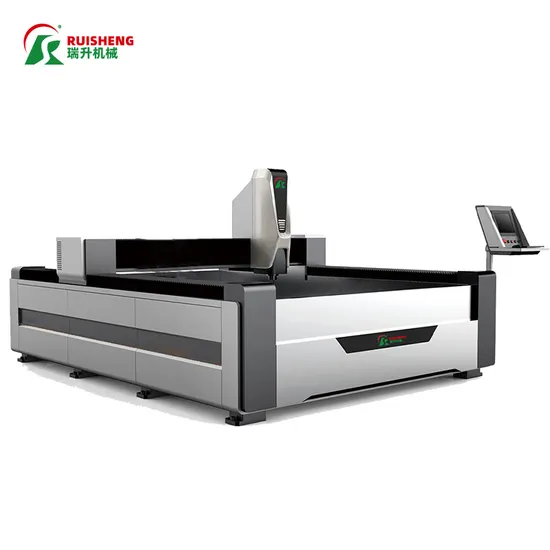

Introducing our Tombstone Engraving Equipment Granite Cutting CNC Machine
Upgrade your stone carving capabilities with our cutting-edge granite cutting CNC machine. This versatile tool is perfect for engraving intricate designs on tombstones, marble, and other types of stone. With advanced technology and precision engineering, our CNC machine ensures high-quality results every time.
Key features include:
Stone engraving machine
CNC router marble
Granite cutting CNC machine
Engraving equipment for tombstones
Whether you're a professional stone carver or a hobbyist looking to expand your skills, our tombstone engraving equipment is a must-have. Invest in the best with our granite cutting CNC machine and take your stone carving to the next level.
Advantage
1.The CNC stone engraving machine is a reliable and versatile machine that comes equipped with a CNC control system and two working heads. This machine is designed for engraving, drilling, lettering, and cutting all kinds of stones, such as marble, granite, quartz, sandstone, or artificial stone, as well as ceramics and glass.
2.Break to rusume function. Continue carving from break point after power resuming from failure.
3.High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy.
4.Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
5.Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
6.Adopt High power frequency changing water cooled spindle,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
7.The special designed Zaxis, can increase the stone relief accuracy, can solve the Zaxis belt or ball screw breaking problem thoroughly.
8.It is designed for all kinds of stone, and it can be used for carving marble, granite and other stones.
9.One machine has multiple functions and has a small footprint. It can help customers realize edging and engraving functions of the countertops.

	2030T-2D Double-Spindle	3020T-2D/3D/4D
Processing size	2000*3000*300mm	3000*2000mm
Dimension of external form	3200*4300*2300mm	4300*3200*2100mm
Processing material size	Double:950*3000mm single:1500*3000mm	1400*1900*2/850*1900*3/650*1900*4
Weight	3.0T	3.6T
Spindle power	7.5KW*2	7.5KW
Spindle speed	24000rm/min	24000rm/min
Voltage	380V/50HZ	380V/50HZ
Motion positioning accuracy	±0.02 mm	±0.02 mm
Repeatability	±0.01 mm	±0.01 mm
air speed	20m/min	20m/min
processing speed	20m/min	20m/min
engraving tool	6/8/10/12/14/16mm	6/8/10/12/14/16mm

After Sales Service
1.Training how to instal the machine, training how to use the machine.
2.Engineers available to service machinery overseas.
3.Technical support all working days
4.A well-trained team of Ruisheng service technicians is at your service. All of them have extensive knowledge and experience in mechanical engineering, which they have gathered during their work in different machine around the world
5.Free training for installation, operation and maintaince
