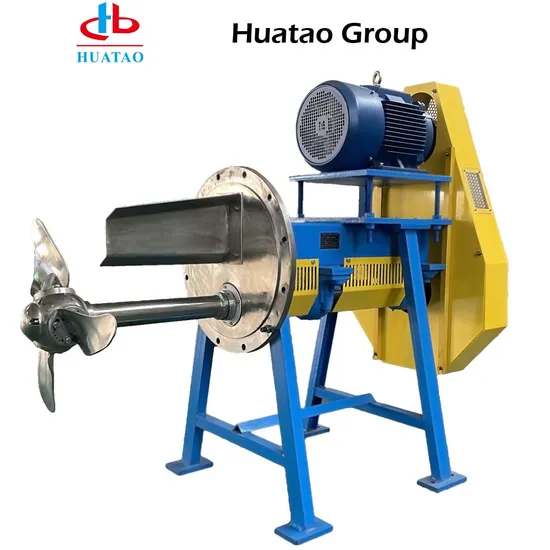

Paper Mill Paper Pulp Tank Chest Propeller Agitator

Product Description

Paper Mill Paper Pulp Tank Chest Propeller Agitator Product Description
It is suitable for slurry concentration which is below 5%, 15-100m3 of the round pool. Advanced blade design,strong thrust.It can be adjusted the angle according to the concentration of the slurry.It has the advantages of small occupation area, fast mixing time, high efficient mixing, easy repairment. Compared with the old-type mixing devices, it has the advantages of easy construction pool, large slurry volume, high recycling rate. Detailed Photos

Product Parameters

Type	HT-600	HT-800	HT-1000	HT-1300	HT-1500	HT-2000
Diameter of impeller: mm	Φ600	Φ800	Φ1000	Φ1300	Φ1500	Φ2000
Chest volume: m3	20-50	40-80	70-100	100-130	130-200	300-500
Power: kw	7.5-11	11-18.5	22-30	30-55	70-100	110-132

Scope of Supply
The Pulp Chest Agitator is composed of pulley, bracket, main shaft, base, sealing ring, packing chamber, shaft sleeve, gland, impeller, shaft cap, belt cover, bearing seat, bearing, V-belt, motor, etc.
Related Pulp Poducts

Our Professional Team

Huatao Service
1. Very Strong Professional Team with 14 years experience, office staff 35 people.
2. Excellent Oral English Ability to communicate with foreign customers.
3. Strong responsibility and good after sale service . Refund money or replace for free for any quality problem.

---
