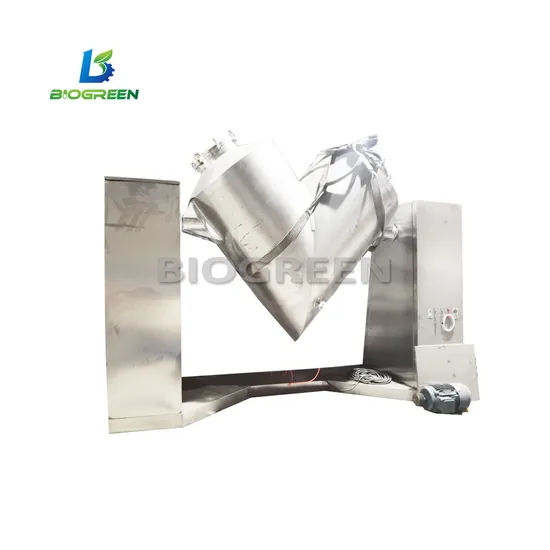

Large Quantity V Type Powder Mixing Machine Detergent Powder Mixer Vh50

US$1,550.00
1-2 Pieces
US$1,450.00
3-4 Pieces
US$1,350.00
5+ Pieces

Basic Info.

Application
Powder, Granules, Powder, Granule or Powder Mixing, Medicine Processing
Application Area
Food, Chemical and Pharmaceutical
Certification
CE, ISO, GMP
Condition
New
Stirring Type
Gravity
Working
Convection Mixer
Capacity
Customers′ Request
Range of Spindle Speed(r.p.m)
12 - 22 r.p.m
Material
SUS304, SUS304L, SUS316, SUS316L
Motor, Gear, Pressure Vessel, Gearbox, P
110V/220V/380V
Usage
Mixing Powder and Particles
Color
Steel True Colors
After Warranty Service
Video Technical Support, Online Support, Spare PAR
After-Sales Service Provided
Online Support, Video Technical Support, Free Spar
Applicable Industries
New Product 2022
Video Technical Support, Online Support,
BV, CE, ISO
Keyword
V Type High Quality Mixer Machine
Core Components
Motor, Gear, Pressure Vessel, Gearbox, PLC, Engine
Key Selling Points
Automatic
Key Selling Point1s
Easy to Operate
Mixer Type
V-Mixer
Layout Type
Verticle
Operating type
Cycle Operating
Warranty
12 Month
Mixing Drum Shape
V Type
Transport Package
Standard Export Plywood Wooden Case
Specification
30L
Trademark
BIOGREEN
Origin
Jiangsu, China
Production Capacity
100000 PCS/Month

Product Description

This machine is designed for mixing two or more dry power or granule raw materials from pharmaceutical
industry,chemical industry,foodstuff industry and so on. The fully enclosed structure also guarantee no leakage
of materials during mixing process. The V-type mixer is one kind of basic mixing equipment in many industries. he structure of this machine in unique.Its mixing efficiency is high and no dead corner .
It is made of stainless steel304 /316L.Its inner and outer walls are processed through polishing.Its appearance is
beautiful.Its mixing is uniform.The V type mixer are equipped with one motor and one reducer. The motor will be
connect with the reducer with one belt. When the motor is power on, it will drive the running of reducer. Then
coupled with the reducer, V-shaped barrel will start running to mix the inside materials up, down, left and right.
Its scope of application is wide.
The forced stirrer can also be equipped,according to request of client, to meet the requirements of raw materials
like pretty fine powder.cake and certain moist stuff.
Equipment parameters
Model VH-5 VH-8 VH-10 VH-20 VH-50 VH-100 VH-200 VH-300 VH-500
Productive capacity(kg/time) 2 3 4 8 20 40 80 120 200
Mixing time(min) 4-8 4-8 4-8 4-8 4-8 4-8 4-8 6-10 6-10
Total Volume (Ltr) 5 8 10 20 50 100 200 300 500
Mixing speed (r/min) 12 12 12 12 12 12 12 12 12
Power of motor (KW) 0.37 0.37 0.37 0.55 0.75 1.1 1.5 2.2 3
Weight (kg) 40 50 55 70 100 120 220 300 650
