Air Linear Duct Production Line 5 IV/Automatic Duct Making Machines Made in China

Product Description

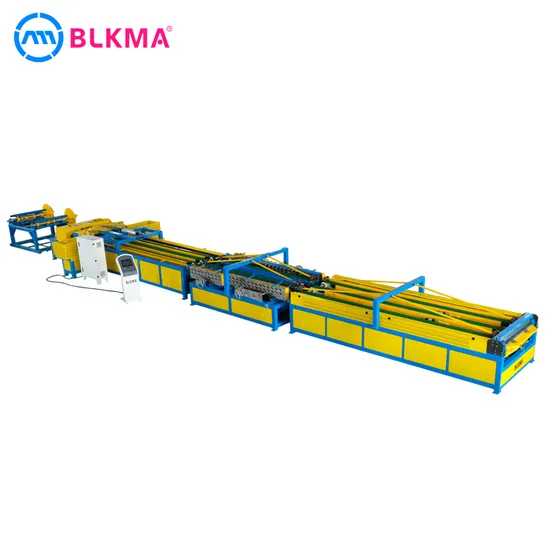

HVAC Auto duct line 5 for all types rectangular duct fabrication

YOUTUBE VIDEO

https://youtu.be/UZRI-VtQlg0

Performance Features:
1. The linear structure of machine makes processing smoothly and occupies a small space.
2. All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
3. Under the material-saving mode of CNC system, waste is less than 20 mm per roll.
4. The locating system is very accurate with servo feeding mechanism, especially when processing square-shaped pipes.
5. It's equipped with 10 inch LCD touch screen and optional dual keyboard mode to keep operation stable.
6. It requires at least one person to operate and each shift can output 600-2000.
7. With production memory functions, the production orders can be tracked and checked.
Function:
It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of 600-2000 square meters. Only with inputting dimensions in duct, production line can automatically complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF / angle steel / C-shaped flange and folding.
Main Technical Parameters:

Model	Sheeting thickness (mm)	Max width (mm)	Max working speed (m/min)	Coiler max weight (T)	Dimensions L*W*H(mm)	Power (KW)	Weight (T)
ADL-5-1300	0.5-1.2	1300	15	7	23000*3300*1500	30	12
ADL-5-1500	0.5-1.2	1500	15	7	23000*3600*1500	30	13

Working Schematic Diagram:
Main import Configuration: 1. Cylinder imported from Germany Festo
2. Beijing Huade + hydraulic system from Taiwan
3. Japan Omron encoder
4. Taiwan Hiwin linear guideways
5. Schneider electrical system

Basic Configuration:
1. Two electric coil cradles, 4 material trays (5-7t each roll)
2. One rack
3. One host (line 2 host)
4. One mechanical arm clutching, locating and transferring platform
5. One displacement type locking machine
6. One duplex TDF flange forming machine
7. One duplex angle steel flange forming machine
8. One servo feeding platform
9. One hydraulic folding machine
10. One set of computer controlling system
Detailed images:
FAQ
1. Are you factory or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can arrange our engineers to your country and you can also send your engineers to our factory
for learning operation. Besides, there are detailed installation and operating instructions
attached, it is very simple. We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be accepted after we both
sides' discussion and agreement.
4. OEM is available?
Yes.

---
