Basic Info.
Certification
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Types of Suspension Systems
Mechanic Suspension
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Quality Standard
CCC ISO BV SGS
Guarantee Term
1 Year, Mainbeam Lifetime Promise
Production Abilit
150 Units Per Month
Transport Package
Containers. Bulk Ship. RO-RO
Specification
By The Customer Needs
Production Capacity
150 Units Per Month
Product Description

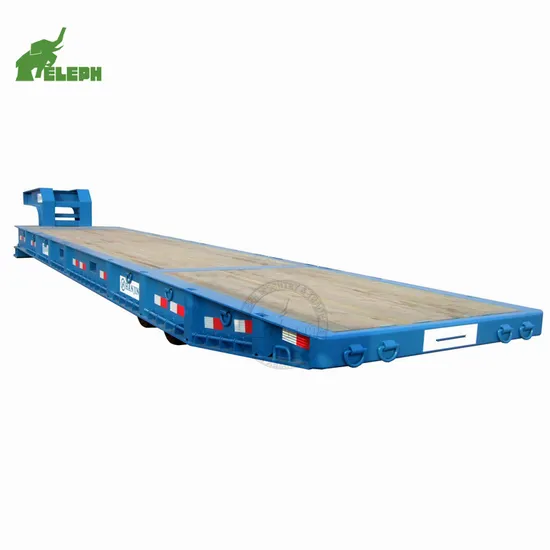

PRODUCT DETAILS Bulk Cargo Transport Port Using Roro Gooseneck 40ft 45ft Mafi Trailer
SPECIFICATIONS
| Model No | Eleph9231Sbt |
| Overall Size | 12640*2650*742Mm |
| Usage | Transport 20ft/40ft Containers Or Loose Cargo On Roro Ship |
| Rated Capacity | 60000kgs |
| Tare Weight | 8000kgs |
| Loading Deck L | 12400mm |
| Rear Overhang | 3500Mm |
| Axle Center Distance | 8315mm+1100mm |
| Type | Low Bed |
| Wood Floor | Tropical Hard Wood |
| Axles | Port Trailer Axles | 4 Sets |
| Tyre | 28*22*22 Pressed-On Solid Tyre | 10 Sets(With 2sets Spare Tyres) |
| Material | High Strength Low Alloy Steel With 345Mpa Yield Strength Is Used For Welded H Beam And Fabricated Parts |
| Main Beam | Fabricated H Beam 540*200mm
Top Plate:22mm Bottom Plate:25mm |
| Deck | 45mm T Plankwood |
| Kingpin Plate | 16mm Steel Plate Q345B |
| Kingpin | 2 Bolt On Type |
| Features | Running Gear
2 Rocker Arms Lowered Box Construction
4 Axles 140x140, 100/80mm
Paper Roller Bearings (30216/32020)
8 Steel Reinforced Solid Rubber Tires(22*16*16) |
PACKING& SHIPPING
COMPANY INFO
EXPORTING CASES RELATED DESIGN FAQ 1. How To Buy From Us ? How to Pay?
- quotation-offer-contract-1st payment-production-final payment-shipment-documentation;
TT/LC/Western Union/Credit Card
2. If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
- 90% Of The Truck In The Market Can Coupling With Our Vehicle, As Howo, Shacman, Beiben, Volve...
- If Other Brand Truck Head, Please Inform Our Sales Manager Before Order Placing
3. Whats The Time For Delivery & Arrival ?
- If Standard Model We Have In Stock Can Ship It Out Within 10 Days After Payment.
- If It Belongs To Customize Series, Ordinary Cases In 15 Days Can Be Finished For Shipment.
- For Asian Countries, Ship Can Be Reached In 1-2 Weeks, If For African & Mid East & European Countries,
25 Workdays Will Be Achieved.
4. If We Can Provide Terms For Reducing Your Import Duties ?
- Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction
>>
