FST100-2008 Weather Station with Rain Gauge

US$142.00-165.00 1 Piece (MOQ)

Basic Info.

Model NO.
FST100-2008
Type
Angle Block Gauge
Material
Stainless Steel
Measurement Object
Depth
Resolution
0.02mm
Precision
0.02mm
Measure Method
Automatic
Accuracy
A
Precision Measuring Device
Precision Measuring Device
Certification
CE
Customized
Customized
Barrel Inlet Size
Diameter 200mm
Power Voltage
5-24V DC 12-24V DC
Output Signal 1
Voltage Signal
Output Signal 2
Current Signal
Output Signal 3
Pulse Signal
Output Signal 4
RS485
Rainfall collector
200mm
Environment temperature
-10-50ºC
Size
216*460mm
Electrical connections
Direct Lead
Transport Package
Standard Export Packing
Specification
standard export packing
Trademark
Firstrate
Origin
Changsha China
HS Code
9015800090
Production Capacity
50000pieces/Month

Product Description

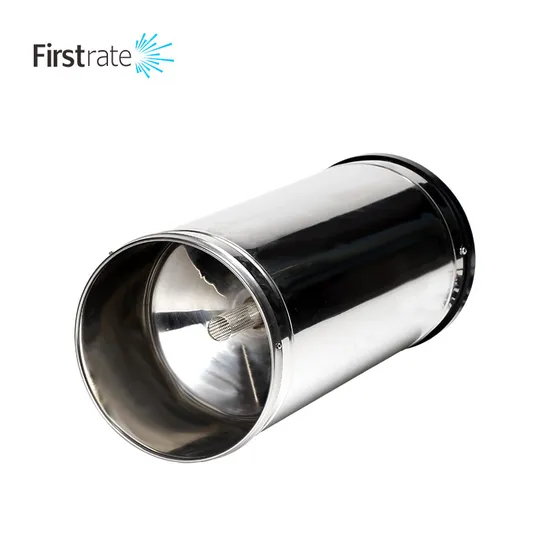

FST100-2008 Weather Station with Rain Gauge

Product Description
Product number FST100-2008
Measuring range Rain intensity range: 0.01mm~4mm/min
(allowable maximum rain intensity 8mm/min)
Output signal RS485 output (Modbus protocol) pulse
Supply voltage Analog signal: 12~24VDC Digital signal: 5~24VDC
Maximum power consumption Static 0.16W Dynamic 1.8W
Precision Accuracy ≤±3%
Resolution 0.2mm
Operating temperature -10~50ºC Relative humidity<95% (40ºC)
Device address 1~255 can be set, the default is 1
Device baud rate Standard MODBUS-RTU protocol, baud rate 9600
Byte format 8 data bits, 1 stop bit, no parity
Electrical connections Direct lead

Company Information


FAQ
Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.

Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.

Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
