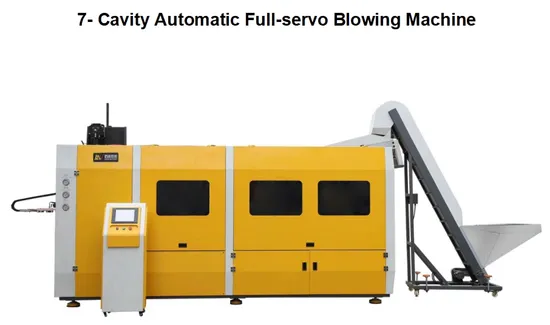

Automatic 14000bph Pet Bottle Pet Bottle Blowing Equipment

US$4,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.

7-cavity

Raw Material

PET

Making Method of Parison

Extrusion-Blow Molding

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

After-sales Service

for Year Service

Advantage 1

Strong Frame with Handle More Strong

Suit Product

PP or Pet Bottle

Guarantee

One Year

Delivery Time

30-60day

Model Type

Auto or Semi-Auto Type

Transport Package

Wooden Case

Specification

Trademark

tango

Origin

Zhangjiagang

HS Code

8422301090

Production Capacity

30 Sets Per Month

Product Description

Product description:

	UNIT	RYSB-C06
	UNIT	90/8
Number of cavities		8
Clamping force	Kn
Max.heating power	Kw	48
Operation pressure	Kg/cm2	8
Max.blowing pressure	Kg/cm2	30
Theoretical output	bph	8000 (500ml)
Max.container volume	ltr	1.5
Max.inlet outer diameter	mm	42
Max.product ovter diameter	mm	90
Max.product height	mm	320
Weight	t	5.5
Size(LWH)	mm	610020002000. 6100+2000

Blowing machine main configuration

Product Name	Origin	Brand
(PLC) computer touch screen	China	Inovance
Ration servo motor	China	Inovance
Variable pitch servo motor	China	Inovance
Clamping servo motor	China	Inovance
Stretch Servo Motor	China	Inovance
Oven servo motor	China	Inovance
Servo reducer	Taiwan	Liming
Servo reducer	Taiwan	Liming
magnetic switch	Taiwan	Yuan Lifu
Low voltage electrical appliances	German	Siemens
Photoelectric switch	Japan	Omron
Throttle valve	Taiwan	AirTAC
Blow valve	Italy	Norgren
Action valve	Korea	ARK
Lift cylinder	Taiwan	AirTAC
Manipulator Pneumatic Finger	German	FEST-O
Sealing cylinder	Taiwan	Lingde

SCREW AIR COMPRESSOR+BOOSTER

item	unit	parameter	remarks
model		EMS-10/40W
Working Medium		air
compression		screw and piston
cooling mode		Primary water cooling	Two-stage water cooling
driving mode		Direct transmission	Two-stage belt drive
compression stage		3	1 stage 1 2,3 stage 2 3
flow	m3/min	10
discharge pressure	MPa	4.0	gauge pressure
suction temperature	ºC	≤40
exhaust temperature	ºC	≤50	after cooling
motor power	KW	120
Circulating water flow	T/h	50T
temperature range		10ºC 32 ºC	5ºCTemperature difference of 5 ºC
10less than 10ºC			Pay attention to anti-freezing measures
,inlet and outlet diameter		DN40
High pressure exhaust pipe interface		DN40
weight	Kg	5000	per set
Voltage		380V/50Hz
motor IP		IP54

Mold
