Mixing Dryer Machine for Plastic Pellet

Product Description

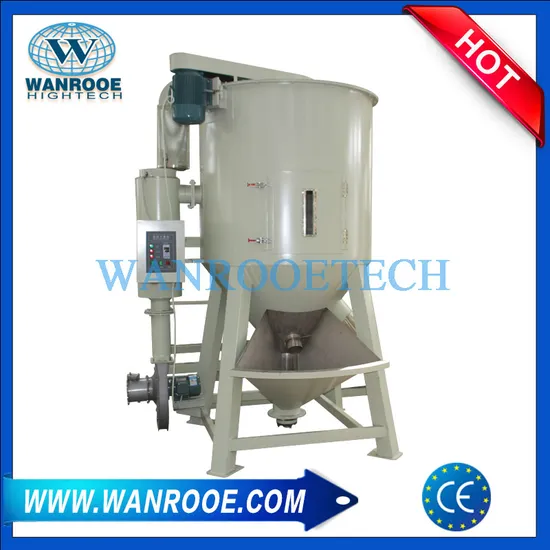

Mixing Dryer Machine for Plastic Pellet
Description for vertical plastic mixer dryer
The Plastic mixer is widely used in mixing, drying, coloring all kinds of resin such as PVC, PP, PE.

Feature :
1. Stir vanes and barrels are made of stainless steel
2. Stir vanes are convenient to be loaded and unloaded easy to be cleaned
3. Close stirring, safe and reliable
4. Complete mixing in a short time
5. Timer is equipped to adjust mixing time freely
6. Material tank and propeller blades are made of stainless steel, eliminating rust corrosion and easy to wash
7. The frame is of framework design, solid and durable
8.Propeller is wholly processed after welding, with high concentricity and steedy operation
9.The standing operation allows little space
10. Mixing in a sealed manner, uniform mixing and no leakage definitely
Details:
Technical parameter

Model	Capacity (kg)	Volume (L)	Heating power(kw)	Blower power(kw)	Stirring power(kw)	Feeding power(kw)
PNMD-500	500	1000	18	0.37	1.1	0.75
PNMD-1000	1000	2000	24	0.55	1.5	0.75
PNMD-2000	2000	4000	30	1.1	2.2	0.75
PNMD-3000	3000	6000	36	1.5	2.2	1.1
PNMD-5000	5000	10000	42	2.2	3.0	1.1

Our Service:
1. Our factory provide machine testing when customer come to our factory to see this machine.
2. We provide detail machine technical specification, electric diagram, installation book, operating manual3. We can provide engineers to customer's factory to help installation and training workers if customer required.
4.Spare parts is available when u need.within warranty,we will provide without any charge.Over warranty,we can provide spare parts just with factory cost.We will take response and provide technical support and repair of the whole machine lifetime.

---
