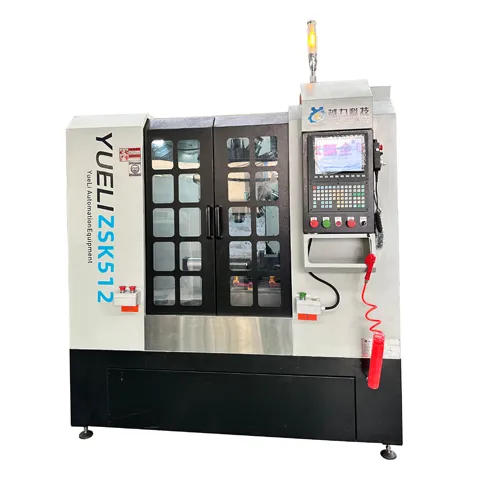

Yl 12 Axis High Precision Milling Drilling Tapping Cutting CNC Vertical Machine for Auto Parts Making

Product Description

High Precision Turret Drilling Tapping Machine

I.Equipment description and pictures1.The spindle motor and the spindle are directly driven to reduce the error of high-speed tapping, and the characteristics of high output force can be greatly utilized in machining and heavy-duty cutting.
2. Mechanical tool change greatly increases the speed of tool change. Taiwan Hust CNC system realizes simultaneous tool change and workpiece positioning.
3.The machine tool has a large inclined chip removal angle, and the automatic chip volume effectively improves the chip removal effect. At the same time, the machine tool quickly flushes the chips and speeds up the return speed of the cutting fluid.
4.4.By loading a high-speed PLC engine, the response speed is improved, the cycle is shortened, the parameters of the processing details are optimized, and the smoothness of the feed is improved. The improved edge/surface effect does not need to be arranged for subsequent processing.
II.Technical Parameter

No.	Name	Specification(mm)	Remark
1	X-axis maximum stroke (screw) mm	700
2	Y-axis maximum travel (screw) mm	500
3	Z axis maximum travel mm	340
4	The rapid moving speed of X/Y/Z axis m/min	30
5	X/Y/Z axis repeat positioning accuracy	0.008mm
6	Rotary Turret	8 spindles
7	Servo spindle motor power	5.5KW
8	Spindle revolutions	0-6000rpm
9	Spindle interface	ER40
10	Drilling capacity (copper) through hole	Ф60mm
11	Max tapping (copper parts)	50X3mm
12	Spindle turret tool change time	0.8s/180°
13	Tool change motor	750W
15	Turret max diameter tool	120mm
16	Workbench size mm	600×420
17	T-slot size (number - slot width × spacing)	3-18×100
18	Dimensions: L × W × H	2100×2100X1900
19	KG Net weight KG	3500KG

III.Production workshop
IV.Certificate
our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
our company:
Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions.
We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.
In the future, we will continue to pay attention to the needs of users, constantly improve the professional level, the quality of science and technology. Win the market with the quality. We are willing to join hands in creating our brilliant future.

---
