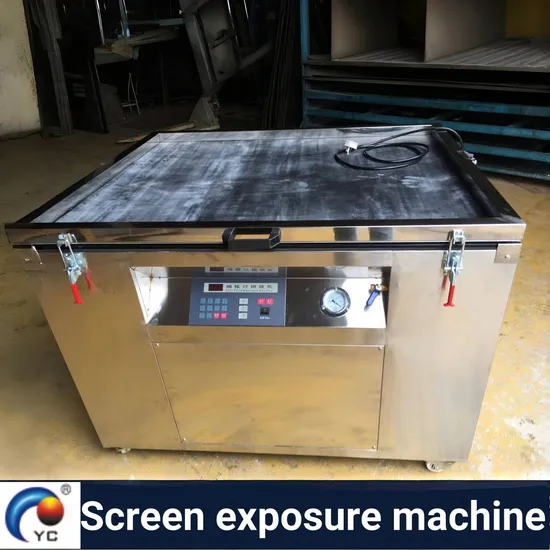

Precision Screen Exposure Machine for Screen Printing

Product Description

Product Description Machine Application:
Making plate for printing scutcheon, outdoor advertising, renew & publish printing.
Making plate for printing circuit board (PCB), solder mask (S/M), and character printing.
Characteristic Working environment:
1. The workshop should keep in 18~29 Degree Celsius, relative humidity 40%~60% and well-ventilated for take good care the forme and chemical.
2. Avoid direct sunlight, if there have windows in workshop, close off by curtain with light-proof.
3. If there have daylight lamp in workshop, should cover it by uv-resistable housing.
Product Parameters

Model	YCME1012	YCME1215
Max screens size	900×1100mm	1100×1400mm
Max exposure area	1000×1200mm	1200×1500mm
Standard illuminant	2000W/3000W cool air uv lamp
Vacuum air pump	220V 1/5HP oil-less pump
Power supply 1	Single phase 220V /35A/50HZ
Power supply 2	Three phase 380V /35A/50HZ
Machine size	1000×1200×950mm	1200×1500×1200mm
N/W	140KG	160KG

Detailed Photos
Feature & Effect

---
