Henan Huadong 10kv 11kv 15kv 20kv 33kv 35kv Single 1 3 Core Copper Aluminum Cu Al XLPE Insulated PVC Sheath Yjv32 Swa Armored Medium High Voltage Power Cable

Product Description

Product Description

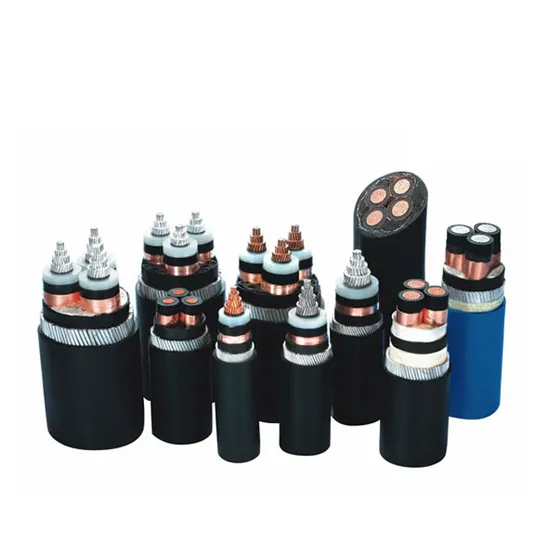

Medium Voltage 1-35KV 1 3 Core Copper Aluminum Conductor Cu Al XLPE Insulated PVC Sheath Armored Power Cable
Conductor: Aluminium/Copper
Insulation/Jacket: XLPE/PVC
Armoured: Galvanized Steel Wires/Steel Tape for 3 Cores
Stainless Steel Wire/Steel Tape or Aluminium Wire/Tape for Single Core
Cores: 1 Core,3 Cores
Section Area: 1.5mm2-800mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, School, Hospital, Underground and so on.We can customize
the size according to your requirement.

HIGH ELECTRICAL CONDUCTIVITY COPPER OR ALUMINIUM CONDUCTOR Copper or aluminium stranded(Class 2) conductors according to lEC 60228
	HIGH RESISTANCE PVC/XLPE INSULATION Available with Cross-linked Polyethylene(XLPE)or Polyvinyl Chloride(PVC) insulation
UV RESISTANCE & FLAME RETARDANT PVC JACKET Provided with flame retardant PVC jacket to pass flame propagation test to lEC60332-1
	CUSTOMIZED DESIGNS Available in Armoured/Non-armoured and Shielded/Non-shielded constructions

No. of Cores	Conduct Cross Section Area	Cable Cross Section Area	Actual Armour Cross Section Area	Overall Diameter	Nominal Weight	Resistance of Conductor at 20ºC
/	mm²	mm²	mm²	mm	kg/km	Ω/Km
3	16	366.25	45	21.6	1152	1.15
3	25	510.45	62	25.5	1800	0.727
3	35	615.44	68	28	2230	0.524
3	50	637.62	78	28.5	2490	0.387
3	70	813.92	90	32.2	3290	0.268
3	95	1074.67	128	37	4440	0.193
3	120	1281.25	141	40.4	5470	0.153
3	150	1625.15	201	45.5	6930	0.124
3	185	1946.83	220	49.8	8350	0.0991
3	240	2383.27	250	55.1	10400	0.0754
3	300	2844.87	269	60.2	12600	0.0601
3	400	3481.91	304	66.6	14600	0.047

Manufacturing Process
Quality Inspection
Customer Project
Company Profile
Henan Huadong Cable Co., Ltd. is a Joint Stock Enterprise Integrated in Cable Production, And Domestic & International
Trade,Founded in 1999, Located in Xiuwu Industrial Zone, Jiaozuo and Occupied 150,000 Square Meters, With Advanced
20 Sets Equipments and 25 Sets Testing Machines, Annual Production Capacity Is over 15 Million Kilometers
We Mainly Produce and Export 1-35kv Power Cables, AAC,ACSR,AAAC Bare Conductors,Overhead Aerial Bundled ABC
Cables,Control Cables,Welding Cables, Rubber Cables, Mining Cables,Crane And Other Special Use Cables.
