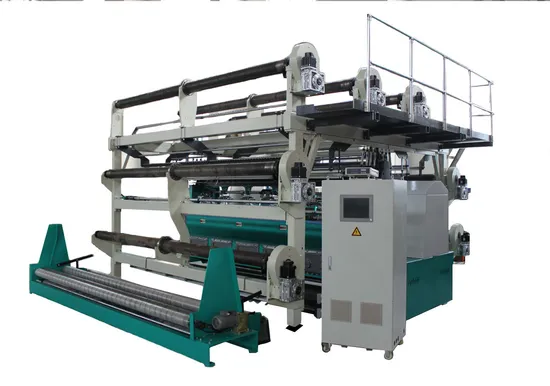

Warp Knitting Machine Double Needle Bar

Product Description

Easy operation high efficiency double needle bar machine with touch screen interface are mainly used at upholstery and technical textile fields for the production of thick and volume fabric , e.g. flannel, mink blanket, high pile, spacer, shoe material, pantyhose etc. The electric controlled system makes the operation efficient and accurate. By the adjusting of trick plate distance, the different thickness of the fabric can be quickly received.
The individual latch needle system and needle block system are available and changeable. Special designed sample machine make the sampling work become fast and convenient. The application of Jacquard bar at double raschel machine makes the designer has more space to created new fashion.
We make double needle bar machine from 4bar to 8bar with wide width range from 42 inch to 190 inch. The concept of our double needle bar machine is based on easy operation and high efficiency. Touch screen interface can record all the production data and fabric parameter which can be transferred via internet for better production management.

FABRIC SPECIFICATIONS
Working width	90",100",138",188"
Gauge	E16,E18,E22,E28
Bar	4,5,6,7,8 bars
BARS/KNITTING ELEMENTS
Individual needle bar	magneisum bar	standard
Knockover comb bar	magneisum bar	standard
Sinker bar	magneisum bar	standard
Ground bar	magneisum bar	standard
Jacquard bar	pizeo jacquard control system
	bar material of Carbon	optional
WARP BEAM SUPPORT
Free standing	application 30"/40"/50"beams
MACHINE DRIVE AND CONTROL
Main motor	invertor regulated control	standard
WARP LET-OFF DEVICE
EBC	electric control	standard
CLOTH TAKE-UP DEVICE
EAC	electric control	standard
BATCHING DEVICE
Electric	friction driven	standard
Batching diameter
PATTERN DRIVE
Pattern disc		standard
EL	via electric motor	optional
MONITORING&SOFTWARE
HMI	monitoring and reporting via display	standard
Cotex Suite		optional
OIL SUPPLY
Heater exchanger	heating and cooling	optional
SAFETY
Light curtain	depending on country of delivery	optional

---
